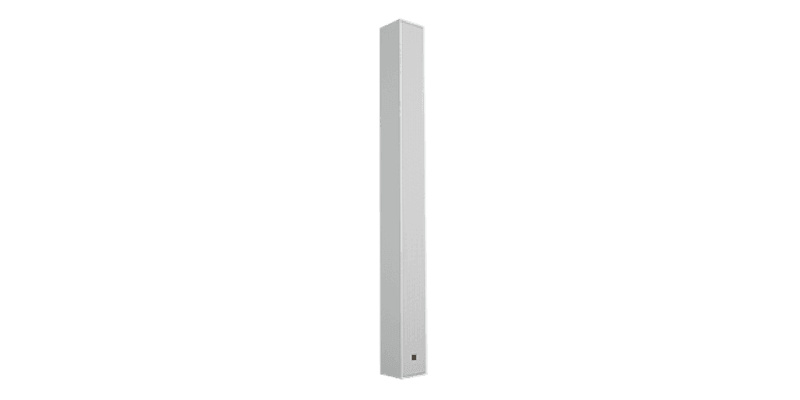

2-way passive enclosure
amplified by LA7.16i / LA2Xi / LA4X / LA12X
Usable bandwidth (-10 dB)
60 Hz – 20 kHz ([SOKA_60])
100 Hz – 20 kHz ([SOKA])
200 Hz – 20 kHz ([SOKA_200])
Maximum SPL1
124 dB ([SOKA_60])
130 dB ([SOKA])
133 dB ([SOKA_200])
Nominal directivity (-6 dB)
Vertical: +5°/-21°
horizontal: 140°
Transducers
MF: 9 × 3.5? cone drivers
HF: 3 × 1? diaphragm compression drivers
Acoustical load
LF: closed enclosure
HF: DOSC waveguide; L-Fins
Nominal impedance
8 ?
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
Connectors
1 x 4-point screw terminal
Rigging and handling
6 M6 inserts for in-wall accessory and safety
In-wall version
Weight (net)
9.4 kg / 20.3 lb
Cabinet
Premium grade Baltic beech and birch plywood
Front
Coated steel grill
Acoustically neutral 3D fabric
Finish
Dark grey brown Pantone 426 C
pure white RAL 9010
custom RAL code on special order
IP
IP55
