General
_
Power Requirements
DC12 V ± 10 % (10.8 V to 13.2 V) (Supplied AC adapter)
PoE+
IEEE802.3 at compliant
LENS
Electric 12 x optical zoom F1.6?F2.8 (f = 3.9 mm ? 46.8 mm)
MINIMUM ILLUMINATION
TBD
Zoom
Optical zoom: 12 x
Horizontal Resolution
TBD

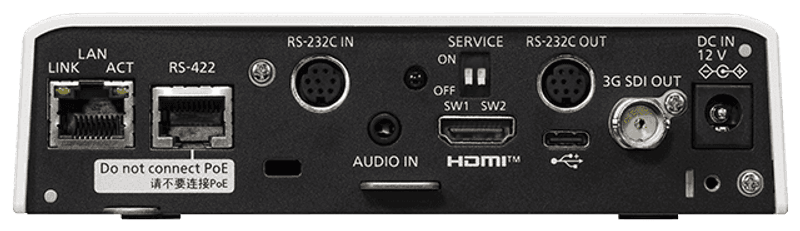

Input/Output Connector
LAN, RS-422, AUDIO IN, USB, RS-232C IN, RS-232C OUT
VIDEO OUTPUT
HDMI, 3G-SDI OUT
Current consumption
TBD
Output Format
_
S/N
TBD
Dimensions (H x W x D)
TBD
Quietness
NC40 or less
Tilting Range
-30°?90° *3
Finish
AW-UE20W: WhiteAW-UE20K: Black
Image Resolution
3840×2160, 1920×1080, 1280×720, 640×360
Panning range
±170°
Camera Unit
_
Mass
TBD
INPUT
DC 12 V IN
OUTPUT
_
INPUT/OUTPUT
_
Installation Method
Stand-alone (Desktop) or suspended (Hanging)*2
Controller Supported
AW-RP150GJ, AW-RP60GJ, AW-RM50AG
Angle of View Range
Horizontal angle of view: 71° (wide) to 6° (tele)Vertical angle of view: 43° (wide) to 3° (tele)Diagonal angle of view: 79° (wide) to 7° (tele)
IP Streaming
_
Image Sensor
1/2.8-type MOS×1
Pan Tilt Head Unit
_
Image Transmission Setting
_
Note
*1 The main unit may appear in the video depending on the pan/tilt position.
*2 To ensure safety, the unit must be secured using the mount bracket supplied.
*3 The main unit may appear in the video depending on the pan/tilt position.
*4 Supported OS indicated are for browsers current as of September 2021. See “Service and Support / PASS” for the latest information on browser support.
Image Streaming Mode
JPEG(MJPEG), H.264, H.265
Output Format | SDI | HD
1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i,1080/30p, 1080/29.97p,
1080/25p, 720/60p, 720/59.94p, 720/50p
Output Format | HDMI | 4K
2160/30p, 2160/29.97p, 2160/25p
Output Format | HDMI | HD
1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30p,1080/29.97p,
1080/25p, 720/60p, 720/59.94p, 720/50p
