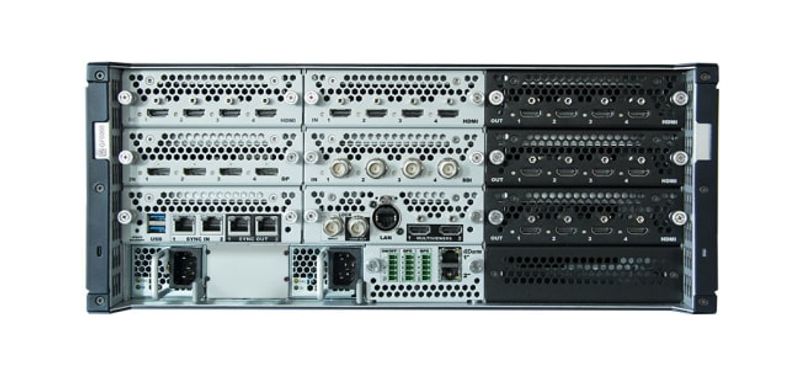

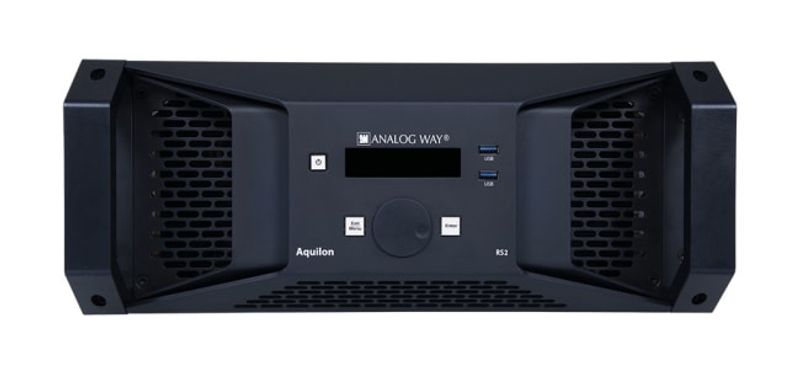

Aquilon RS2 is a mission-critical 4K/8K multi-screen presentation system and videowall processor with 16 inputs and 12 outputs, delivering uncompromising presentation experiences to high-end staging and premium system integration. Aquilon RS2 combines industrial-grade reliability, unrivaled ease-of-use, versatile 4K digital connectivity, unmatched real-time 10/12-bit 4:4:4 video processing power, best-in-class image quality, and pure 4K60p on each input and output with ultra-low latency.
- Industrial grade reliability
- Field-swappable I/O cards
- Versatile 4K digital connectivity (DP 1.2, 12G-SDI, HDMI 2.0)
- Future-proof modular design with I/O cards available separately: DP, SDI, HDMI, SFP+, Optical Fiber, SDVoE, and more to come
- Ultra-low latency 10/12-bit 4:4:4 video processing
- 80 Megapixels throughput on Program at 10-bit 4:4:4 @60Hz
- Up to 8x 4K or 16x DL/2K mixing layers (+live backgrounds)
- High Frame Rate up to 144Hz
- Real-time LUT-based SDR/HDR10/HLG conversion and color correction
- Intuitive HTML5-based user interface with live source thumbnails
- Native DANTE audio networking hardware and support
