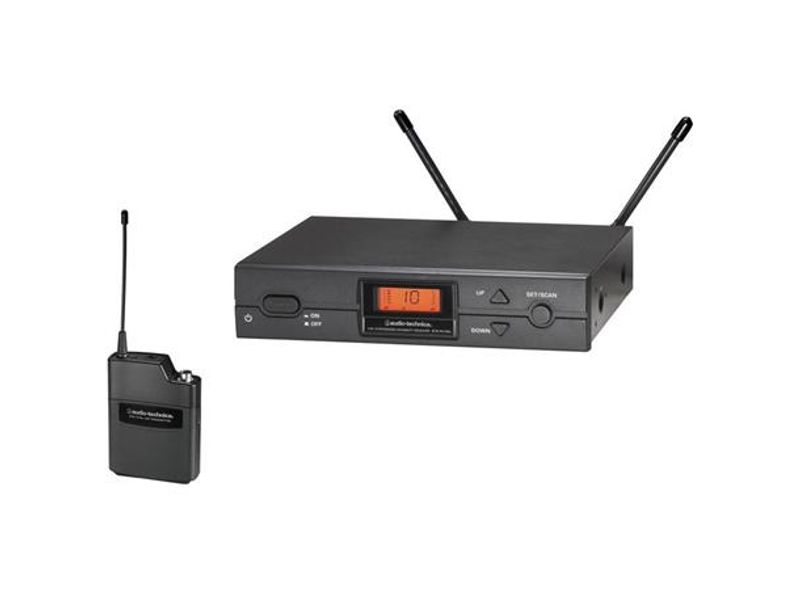

OVERALL SYSTEM
- Operating Frequencies: UHF band
856.100 – 864.900 MHz (F Band)
606.500 – 629.900 MHz (U Band – ch.38)
721.500 – 746.375 MHz (G Band)
656.125 – 678.500 MHz (D Band)
487.125 – 506.500 MHz (I Band) - Number Of Channels: 10 total
- Frequency Stability: ±0.005%, Phase Lock Loop frequency control
- Modulation Mode: FM
- Operating Range: 100 m (300) typical
- Operating Temperature Range: 41° F (5° C) to 113° F (45° C)
- Frequency Response: 100 Hz to 15,000 Hz
