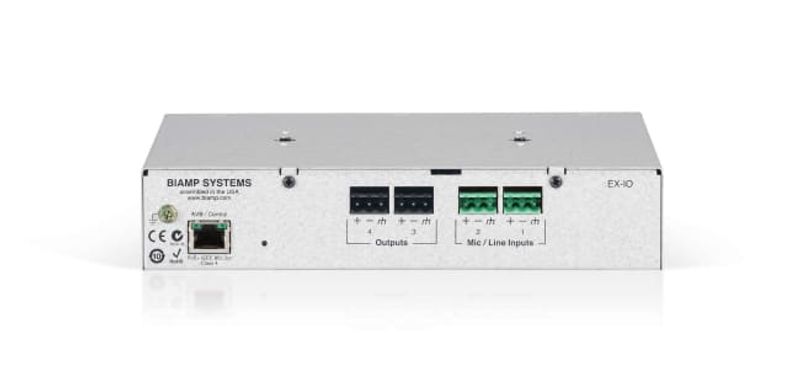

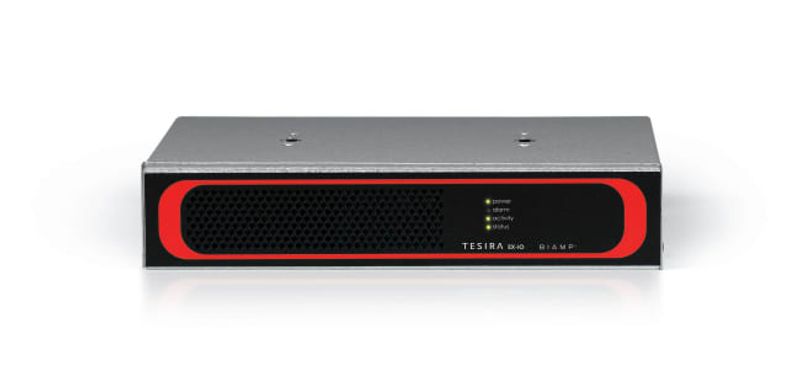

The Tesira EX-IO is a half-rack expander box for use with AVB-enabled Tesira server-class devices. The EX-IO is a 4-channel input and output expander. The expander features two channels of mic or line-level audio input and two channels of mic or line-level audio output. The expander communicates with the Tesira AVB network for audio networking, configuration, and control and is powered by PoE+.
- Two channels of balanced mic or line-level input
- Two channels of balanced mic or line-level output
- 0 – 66dB gain, adjustable in 6dB increments on inputs
- Selectable full-scale output reference level (24dBu, 18dBu, 12dBu, 6dBu, 0dBu, -31dBu) for best interface/performance
- +48V Phantom Power on inputs
- Powered by PoE+
- Half-rack chassis
- RoHS-compliant and AES grounded
- Covered by Biamp Systems’ five-year warranty
