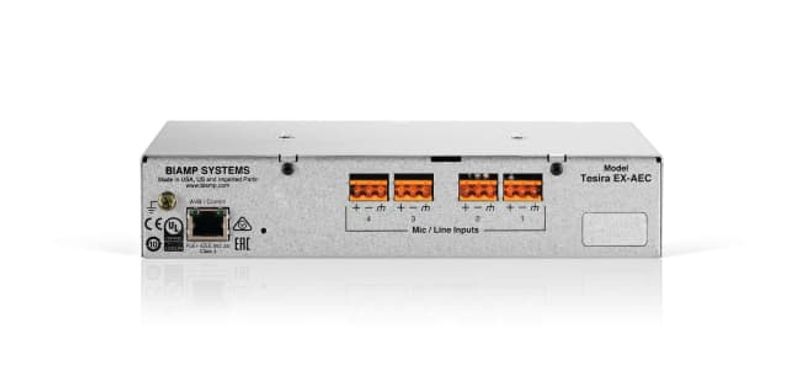

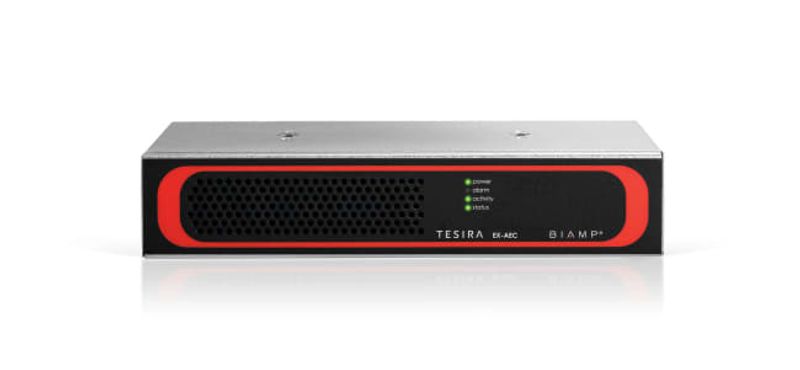

The Tesira EX-AEC is a half-rack expander box for use with AVB-enabled Tesira server-class devices. The EX-AEC is a 4-channel mic or line-level audio input expander with AEC (Acoustic Echo Cancellation). The expander communicates with the Tesira AVB network for audio networking, configuration, and control and is powered by PoE+.
- Four channels of balanced mic or line level input with AEC (Acoustic Echo Cancellation)
- 0 – 66dB gain, adjustable in 6dB increments
- +48V Phantom Power
- -100 to +12dB fader range for level
- Audio and control networking over AVB/TSN
- Powered by PoE+
- Plug-in barrier strip connectors
- Front panel LEDs for device status indications
- Half-rack chassis
- RoHS compliant and AES grounded
- Covered by Biamp Systems’ five-year warranty
