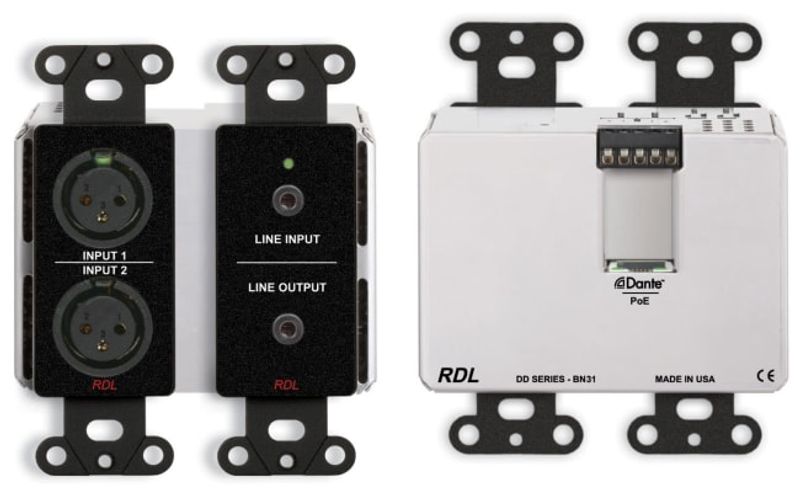

Dante Network Interface for Four Audio Inputs and Four Audio Outputs
One Mini-jack and Two XLR Front-Panel Inputs
One Mini-jack Front-Panel Output; Two Outputs on Rear-Panel Terminal Block
Converts Two Standard XLR Mic or Line Audio Sources to Dante Network Channels
Each XLR Input is Switch Selectable for Mic or Line
Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
Switch-Selectable 48 V Mic Phantom (P48)
Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
Mini-jack -10 dBV Input is Switch Selectable Stereo or Summed to Mono
Converts Four Dante Network Audio Signals to Line Level
Mini-jack -10 dBV Output is Switch Selectable Stereo or Mono (Left Channel)
Rear Panel Outputs Switch Selectable Balanced +4 dBu or Unbalanced -10 dBV
Special Software Not Required for Module Setup
Studio Quality, Low-Noise Performance
High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
Legendary RDL Analog Filtering Enhances Superb Audio Performance
