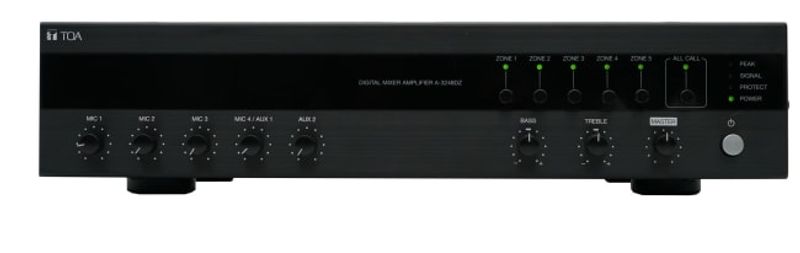

TOA's digitale mikserforsterker A-3212DZ-EB 1CE er en høytytende mikserforsterker som passer for kringkasting, talevarsling eller bakgrunnsmusikk i skoler, kontorer, butikker, fabrikker, moskeer, kirker og store rom.
- Høy holdbarhet, pålitelighet og ytelse

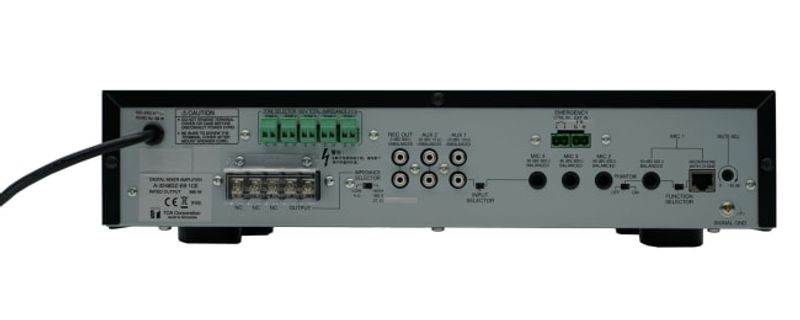

- Fire mikrofoninnganger, to AUX-innganger og én opptak-utgang
- Høyttalerutgang for konstant spenning (100V) og lav impedans (4Ω)
- Drives av vekselstrøm
- Mute-funksjon
- Uavhengig volumkontroll for inngang og hovedvolumkontroll
- Uavhengig tonekontroll av boost og cut for både høy og lav frekvens
- MIC 1 er utstyrt med phantom power for kondensatormikrofon og har også mulighet for chime mikrofon
- Sikring forhindrer feil på grunn av overoppheting
- Alle MIC-innganger er elektronisk balanserte innganger
- Sonevelger
| A-3212DZ-EB 1CE | A-3224DZ-EB 1CE | A-3248DZ-EB 1CE | |
|---|---|---|---|
| Power source |
100 - 240 V AC, 50 / 60 Hz |
100 - 240 V AC, 50 / 60 Hz |
100 - 240 V AC, 50 / 60 Hz |
| Rated output |
120 W |
240 W |
480 W |
| Frequency response |
50 Hz - 20 kHz |
50 Hz - 20 kHz |
50 Hz - 20 kHz |
| Power consumption |
44 W (AC operation at 1/8 maximum output without clip) |
62 W (AC operation at 1/8 maximum output without clip) |
99 W (AC operation at 1/8 maximum output without clip) |
| S/N ratio |
60 dB |
60 dB |
60 dB |
| Number of channels |
5 |
5 |
5 |
| Connectable microphones |
4 |
4 |
4 |
| Inputs |
MIC 1 : 1 mV (-60dB*), 600 Ω, balanced, phone jack, selectable to RJ45 MIC 2-3 : 1 mV (-60dB*), 600 Ω, balanced, phone jack MIC 4 : 1 mV (-60dB*), 600 Ω, balanced, phone jack, selectable to AUX 1 AUX 1 : 100 mV(-20dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4 AUX 2 : 100 mV(-20dBc), 10 kΩ, unbalanced, RCA pin jack PRIORITY : 0 dB*, 600 Ω, unbalanced removable terminal block |
MIC 1 : 1 mV (-60dB*), 600 Ω, balanced, phone jack, selectable to RJ45 MIC 2-3 : 1 mV (-60dB*), 600 Ω, balanced, phone jack MIC 4 : 1 mV (-60dB*), 600 Ω, balanced, phone jack, selectable to AUX 1 AUX 1 : 100 mV(-20dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4 AUX 2 : 100 mV(-20dBc), 10 kΩ, unbalanced, RCA pin jack PRIORITY : 0 dB*, 600 Ω, unbalanced removable terminal block |
MIC 1 : 1 mV (-60dB*), 600 Ω, balanced, phone jack, selectable to RJ45 MIC 2-3 : 1 mV (-60dB*), 600 Ω, balanced, phone jack MIC 4 : 1 mV (-60dB*), 600 Ω, balanced, phone jack, selectable to AUX 1 AUX 1 : 100 mV(-20dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4 AUX 2 : 100 mV(-20dBc), 10 kΩ, unbalanced, RCA pin jack PRIORITY : 0 dB*, 600 Ω, unbalanced removable terminal block |
| Control input |
Priority Control Input, removable terminal block |
Priority Control Input, removable terminal block |
Priority Control Input, removable terminal block |
| Outputs |
Speaker Output : in screw type terminal Direct Line (selectable) : 83 Ω (100V) or 4 Ω Zone Selection : 5 zones simultaneously selectable Rec Out : 0 dB*, 600 Ω, unbalanced, RCA pin jack |
Speaker Output : in screw type terminal Direct Line (selectable) : 42 Ω (100V) or 4 Ω Zone Selection : 5 zones simultaneously selectable Rec Out : 0 dB*, 600 Ω, unbalanced, RCA pin jack |
Speaker Output : in screw type terminal Direct Line (selectable) : 21 Ω (100V) or 4 Ω Zone Selection : 5 zones simultaneously selectable Rec Out : 0 dB*, 600 Ω, unbalanced, RCA pin jack |
| Operating temperature |
0°C to +40°C (32°F to 104°F) |
0°C to +40°C (32°F to 104°F) |
0°C to +40°C (32°F to 104°F) |
| Finish |
ABS resin, Steel plate, black |
ABS resin, Steel plate, black |
ABS resin, Steel plate, black |
| Dimensions |
420 x 100.9 x 357 mm (W x H x D) |
420 x 100.9 x 357 mm (W x H x D) |
420 x 100.9 x 357 mm (W x H x D) |
| Weight |
4.6 kg |
4.9 kg |
5 kg |
| Accessory (included) |
Removable terminal plug (2 pins) x7 |
Removable terminal plug (2 pins) x7 |
Removable terminal plug (2 pins) x7 |
