10Gb Network switch for converged AV networks
GigaCore 30i comes fully optimized out of the box to be used with the most advanced AV protocols. Preconfigured Quality of Service (QoS), IGMP multicast, and PTPv2 settings will assure a responsive and extremely stable network environment for the most demanding time-critical audio protocols like Dante™, AES67, Q-SYS, and many more.
With up to 1000W of total PoE budget and PoE++ on every copper port, this GigaCore switch can drive any IP PTZ camera or loudspeaker on the market today.
GigaCore 30i is the ideal solution for AV networks in fixed installations, integration and touring for lighting, audio, and video.
Most suitable applications: Fixed installations
RLinkX (Link redundancy): Yes
Groups (VLAN segmentation): Yes
MultiLinkX (Link aggregation): Yes
Profile manager: Yes
Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
MAC address table: 16384 entries
Address learning / Aging: Self learning, Auto aging
Switching throughput: 168Gbps
Jumbo frames: MTU up to 12000
IGMP support: Yes (V1/V2/V3)
IGMP snooping: Yes, enabled by default
Port sensing: Auto negotiation
Auto crossover: MDI / MDIX
Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

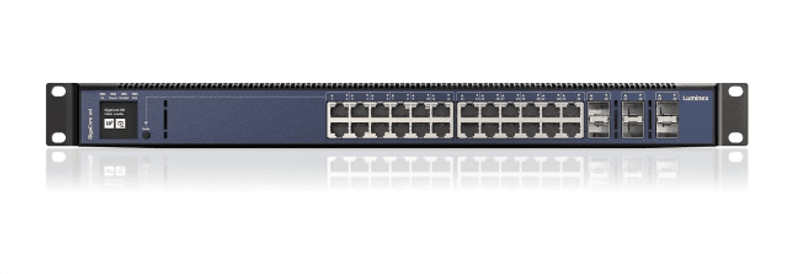

Ethernet connectivity: 24 x RJ45 connectors (1Gbps))
Fiber connectivity: 6 x SFP+ cages (10Gbps/1Gbps) (independent from other ports)
Ethernet port speed: 1Gbps
Serial: 1 x USB C

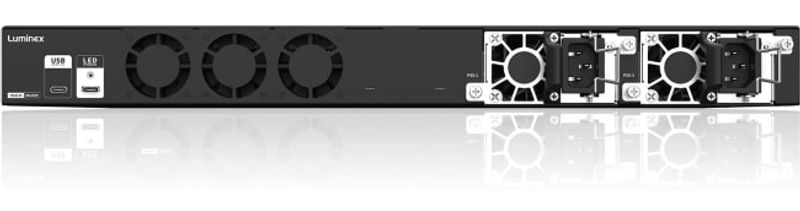

Power connectivity: 1 x IEC (14C) inlet for each PSU
Power input: 100-240VAC, 50-60Hz
Power consumption: Maximum 40W non PoE version Maximum 500W/1000W with PoE
Fuse: NA
Backup power input: 100-240VAC, 50-60Hz (through second hot swappable PSU)
Backup PoE power input: 100-240VAC, 50-60Hz (through second hot swappable PSU)
PoE: PoE ++ Optional (up to 1000W)
