Artikel Nr.
20102191
Produkt
DL 06-165/T-EN54
Power
6/3/1,5 W
Impedance (100V)
1667/3333/6667 ohm
Frequency Range
404 - 10.100 Hz

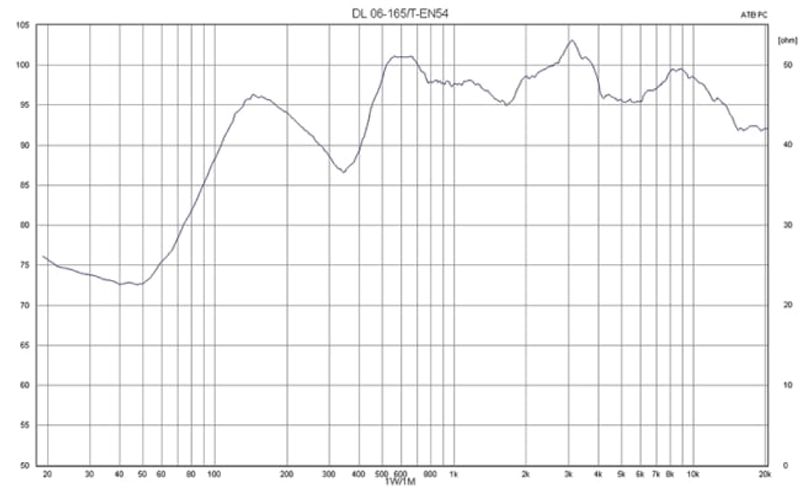

Frequency Response
80 - 24.000 Hz
SPL 1W/1m, peak
102,5 dB
SPL , 1W/4m, peak
90,5 dB
SPL Pmax/4m, peak
98,2 dB
SPL, rated noise power / 4m
89,0 dB
Sensitivity EN54-24, 1W/4m
81,0 dB
Sensitivity EN54-24, 1W/1m
93,0 dB

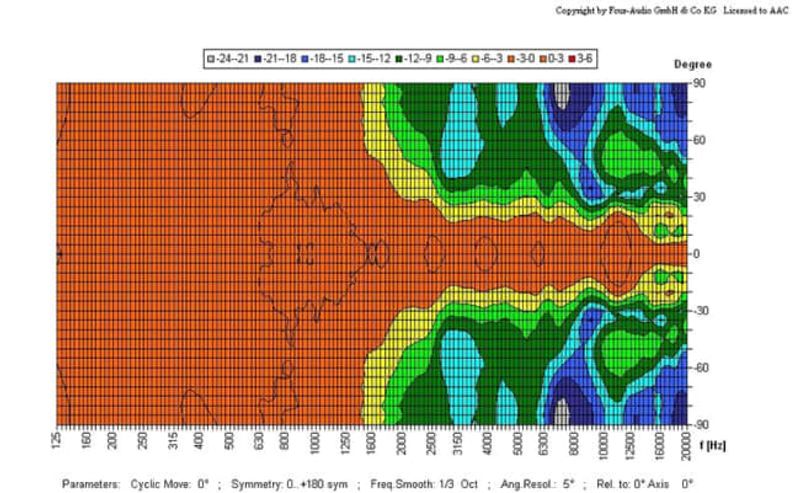

Dispersion -6dB, 500Hz
h/v 180°
Dispersion -6dB, 1KHz
h/v 175°
Dispersion -6dB, 2KHz
h/v 100°
Dispersion -6dB, 4KHz
h/v 50°
Connector
2-pin ceramic block
Maximum cable cross section
8mm²
Max. cable cross section loop
2x2mm²
Temperature range
-10 / +55 C°

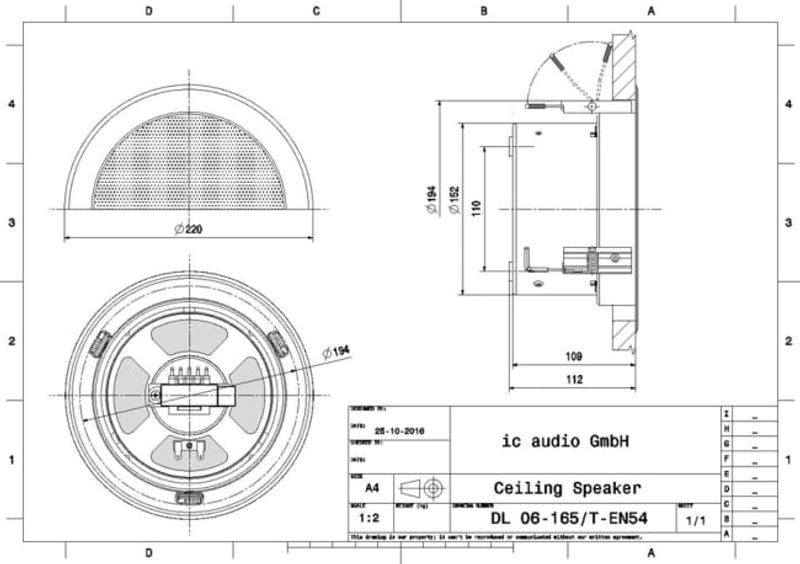

Dimensions
220x109 mm
Type A/B
A
IP Rating
IP55
Weight (net)
1,36 kg
Colour
RAL 9010
Mounting
Quick fit mounting
Packing Unit
12
Ref. Nr.
010-14
ID-Code
SAA-LS01
Ceiling Cut-out
198 mm
Certificate Number
1438-CPR-0233
