Features
4-in-1 RGBL Color Mixing
One Foot in Length
50,000 hour LED Lifespan
Beam angle: 14.5º, or change with optional Beam Filters
Illuminance: 251 lux @ 5 m
IP Rating: 66

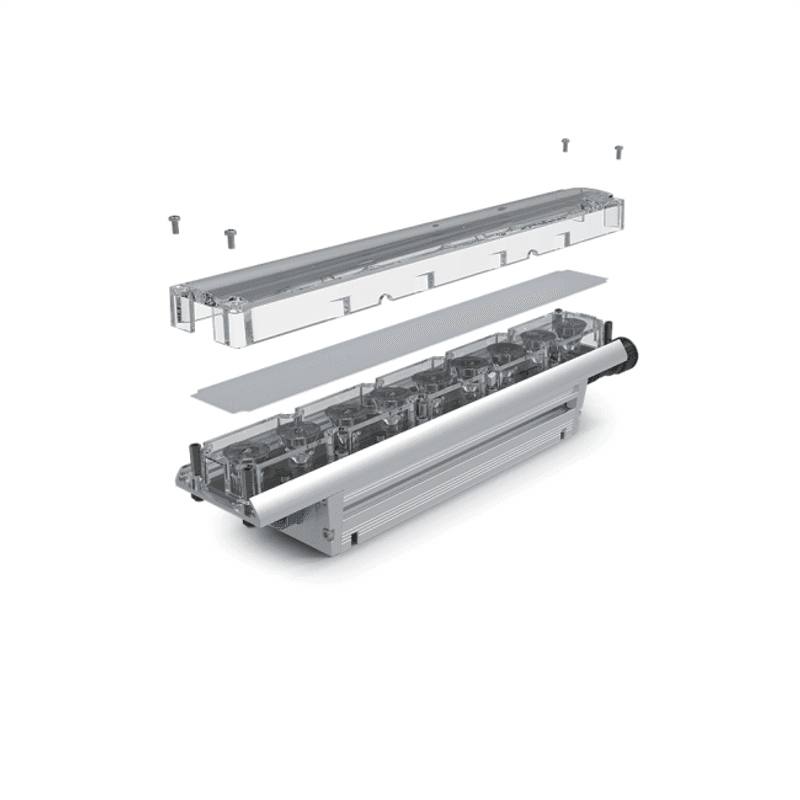

Optional Beam Spread Filters can be applied without breaking IP Seal
Description

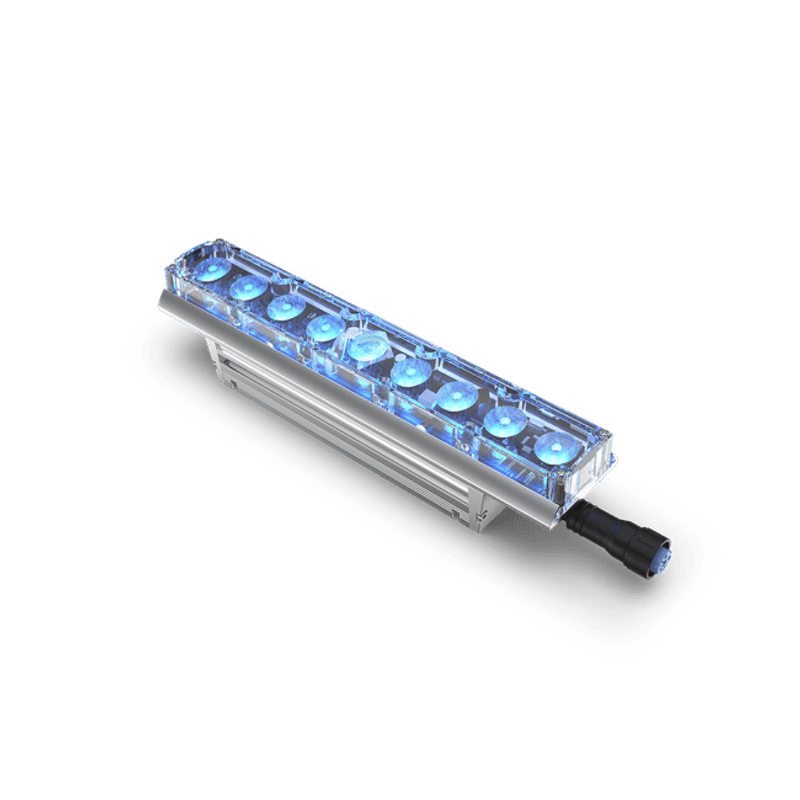

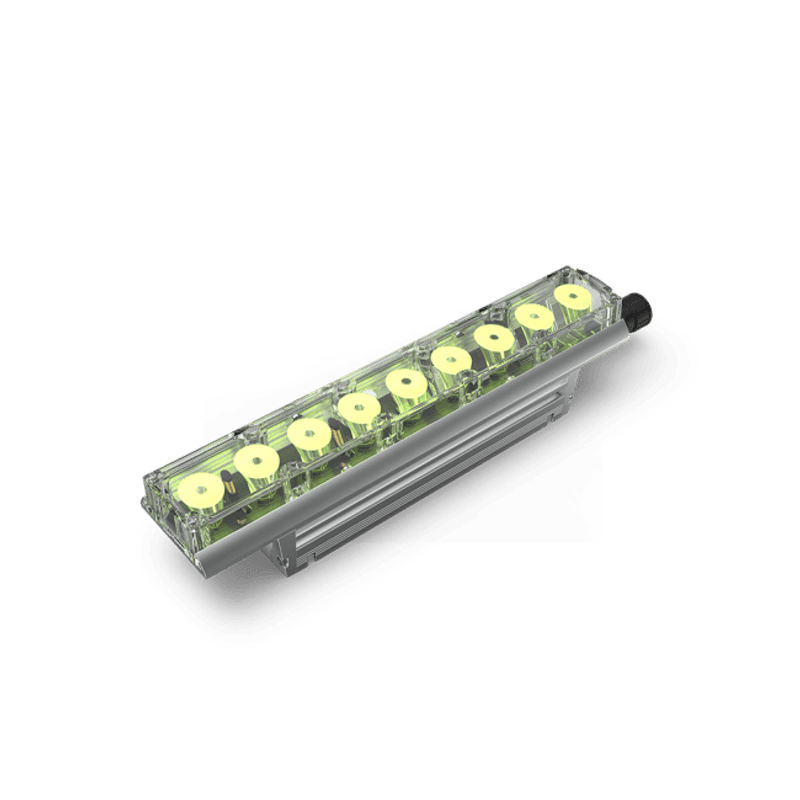

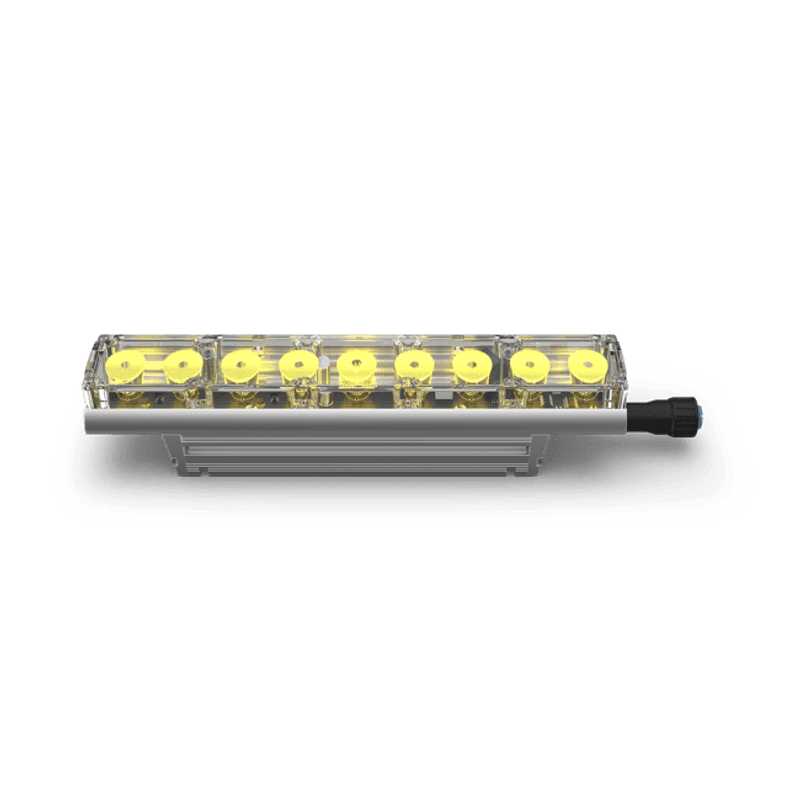

Ilumiline SL is an outdoor-rated linear battens with a sleek, low profile and RGBL (Red, Green, Blue, Lime) color mixing. Like all Ilumi series products, it features plug-and-play installation with an optical system that delivers stunning, fully-mixed colors. The one-foot version is perfect for fitting into available space, while interchangeable, easy-to-install beam spread filters to help the fixture adapt to various applications and throw distances. Additionally, the lime emitter allows Ilumiline SL to create not only brilliant saturated colors, but crisp and clear whites to beautify any building, in any weather conditions.
Specifications
Light Source & Optical Specifications
Light Source: 9 LEDs (quad-color RGBL) 3.5 W, (200 mA)
Light Source Lifespan: 50,000 hours based on LED manufacturer’s specifications.
Installed Optics: 12°
Optional Optics: Medium Filter, Wide Filter, Very Wide Filter, Asymmetrical Filter
Beam Angle: 14.5°
Field Angle: 30°
Cutoff Angle: 49.6°
Lumens: 808
Base Illuminance: 251 lux @ 5 m
Efficacy @ Full: 34 lm/W
Color Temperature Presets: 1,800 K – 10,000 K
Construction & Physical Specifications
Dimensions: 12 x 3.03 x 3.43 in (305 x 77 x 87 mm)
Weight: 2.65 lb (1.2 kg)
Fixture Color: Brushed aluminum
Housing Material: Extruded aluminum
Lens Cover: ABS plastic
Mounting Options: Bracket
Control Specifications
Control Protocol: USITT DMX-512a, RDM
Operating Modes: Selectable personalities, via L?GIC Driver
Solid (1-Channel)
Arc 1 (3-Channel)
Arc 1+D (4-Channel)
Arc 2 (4-Channel)
Arc 2+D (5-Channel)
Arc Full (8-Channel)
Special 2 (9-Channel)
Standalone Control: Yes
Fixture setup: RDM Only
Data Connection: 3.7 ft (1.13 m) Proprietary Waterproof cable
Electrical System Specifications
Input Voltage: 100 to 277 VAC, 50/60 Hz (auto-ranging)
Power and Current:
23 W, .200 A @ 120 V, PF: 94
22 W, .118 A @ 230 V, PF: 78
21 W, .113 A @ 277 V, PF: 71
Power Supply: Electronic internal
Dimmer: Electronic
Power Linking: 52 units @ 120 V, 88 units @ 230 V, 92 units @ 277 V
Power Connection: 3.7 ft (1.13 m) Hardwire to Proprietary Waterproof cable
Recommended Power Cable: Power and Data Interface (14 AWG)
Cable Connector Max Diameter: 1.18 in (30 mm)
Thermal Specifications
Startup Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
Operating Temperature Range: -40 °F to 113 °F (-40°C to 45 °C)
Maximum Surface Temperature: 167 °F (75 °C)
Minimum Distance to Illuminated Surface: 3.28 ft (1 m)
Minimum Distance to Flammable Surface: .98 ft (.3 m)
BTU at various voltages:
78 BTUs/hr @ 120 V, 60 Hz
72 BTUs/hr @ 208 V, 60 Hz
75 BTUs/hr @ 230 V, 50 Hz
72 BTUs/hr @ 277 V, 60 Hz
Regulatory & Voluntary Qualification
Certification Listings: UL, MET, CE, RoHS, FCC
Impact Resistance Rating: IK10
Vibration Rating: 3G
Wind Load Rating – EPA: .237 ft²
Environment: Dry/Damp/Wet location, IP66, All indoor and limited outdoor permanent installations.
Please refer to the User Manual for more detailed information on installation.
Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
Installation Orientation: Any, Vertical only, Horizontal only
Accessories
Required: RDM Device, Power and Data Interface
Optional: Medium Filter (20°), Wide Filter (40°), Very Wide Filter (55°), Asymmetrical Filter (60° x 10°), Power and Data extension cable
Order Code
Ilumiline SL: ILUMILINESL
Ilumiline Power & Data Interface: ILUMILINEBOX
Ilumiline SL Medium Spread Filter: ILUMILINESLM
Ilumiline SL Wide Spread Filter: LUMILINESLW
Ilumiline SL Very Wide Spread Filter: ILUMILINESLVW
Ilumiline SL Asymmetrical Spread Filter: ILUMILINESLASYM
17? Ilumiline Extension Cable: ILUMILINECABLE1
10? Ilumiline Extension Cable: ILUMILINECABLE10
25? Ilumiline Extension Cable: ILUMILINECABLE25
50? Ilumiline Extension Cable: ILUMILINECABLE5
