Features
4-in-1 RGBL Color Mixing
50,000 hour LED Lifespan
Beam Angle: 6.5º, or change with optional Beam Filters
Illuminance: 10,926 lux @ 5 m
IP Rating: 67
Integrated Yoke

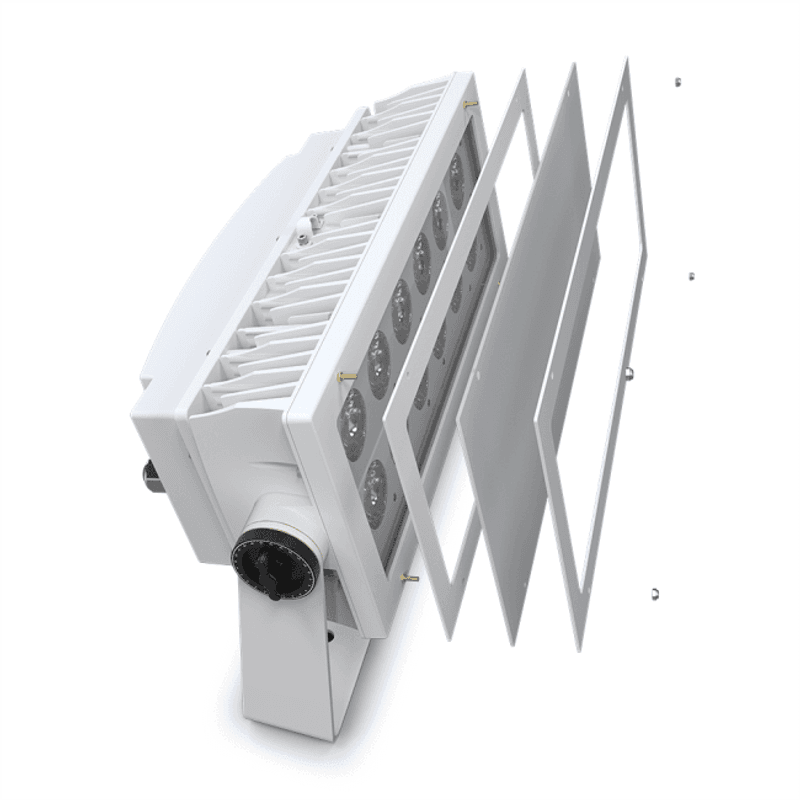

Optional Beam Spread Filters can be applied without breaking IP Seal
Description

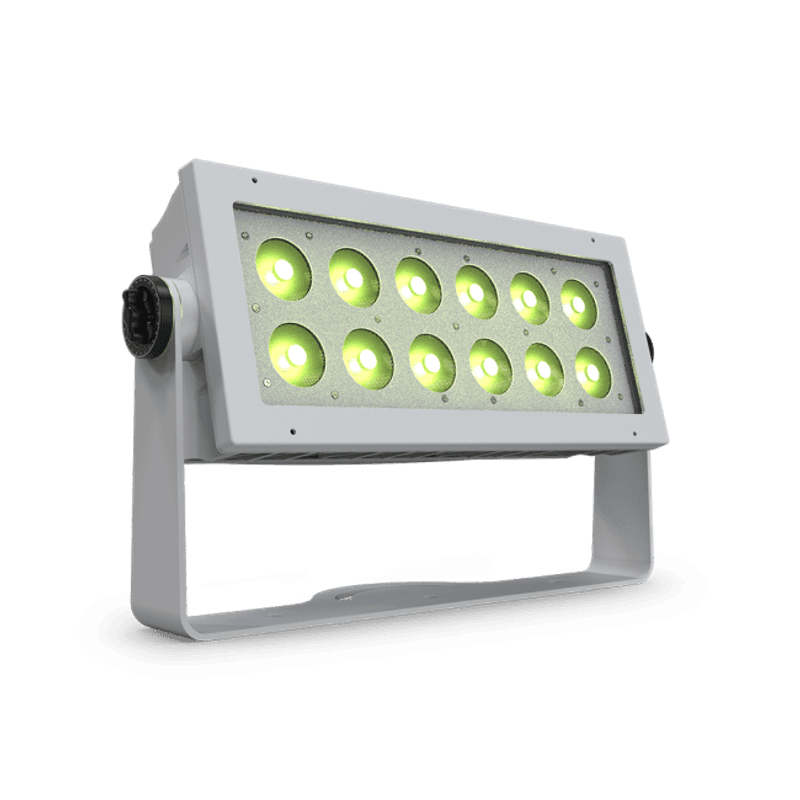

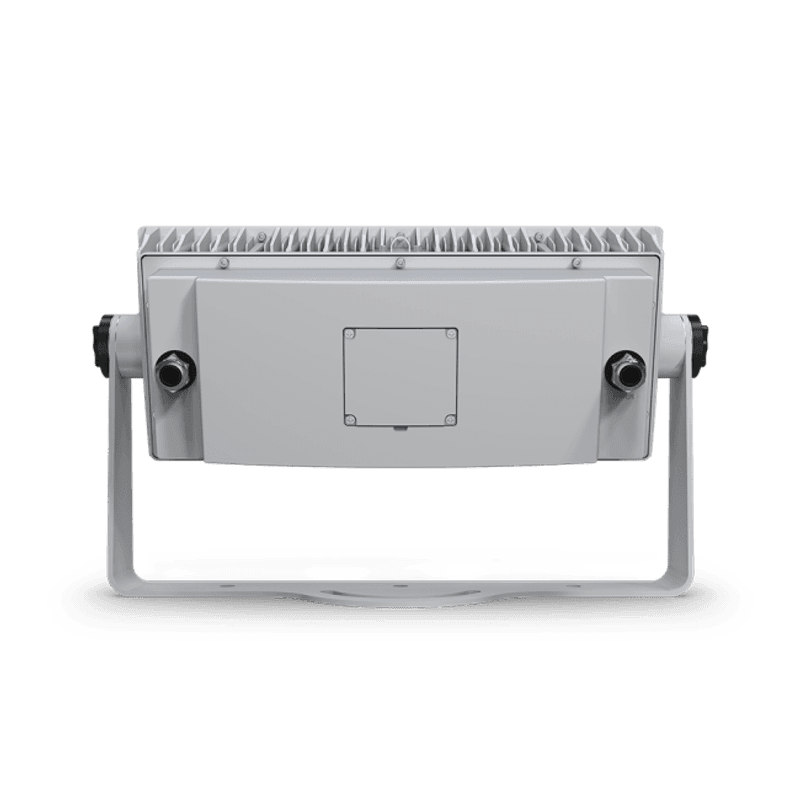

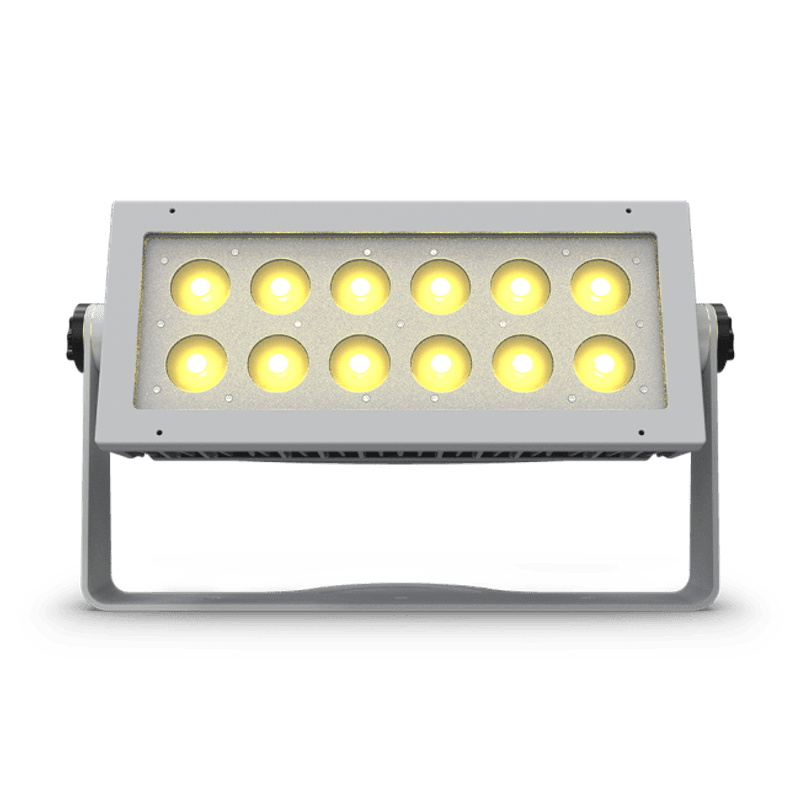

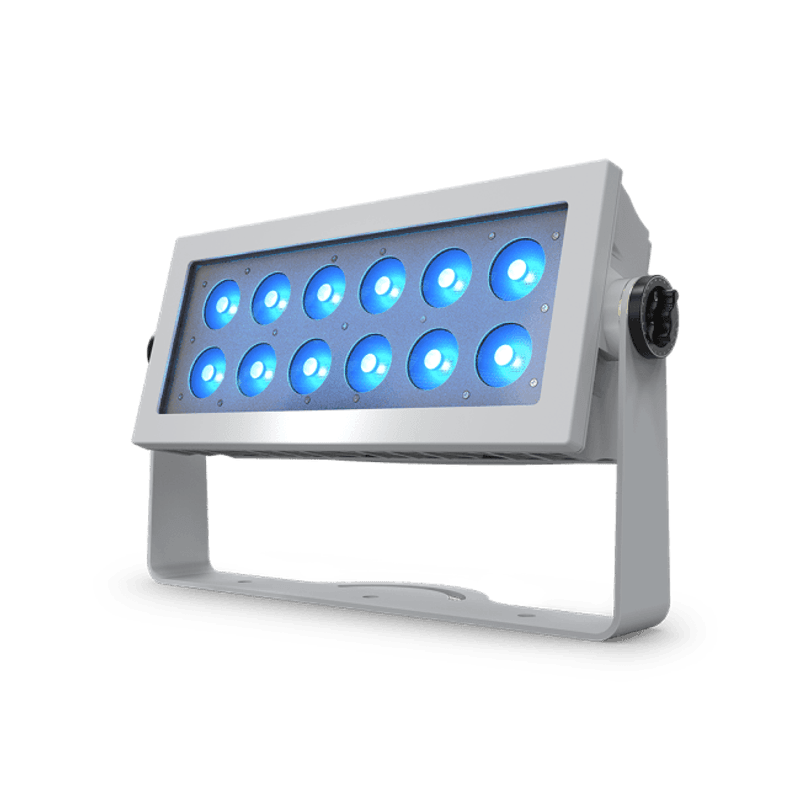

Ilumipanel ML from Iluminarc is a large-format LED architectural unit. Perfect for washing the sides of buildings in bold, beautiful colors, it includes a range of easy-to-install beam spread filters to fit any size application. Installation is fast and simple, while the sleek chassis blends into the environment. Precision optics eliminate multicolored shadows, and the RGBL (Red, Green Blue, Lime) four-in-one LEDs output clean, true whites and a nearly unlimited palette of striking colors.
Specifications
Light Source & Optical Specifications
Light Source: 12 LEDs (quad-color RGBL) 20 W, (1 A)
Light Source Lifespan: 50,000 hours
Installed Optics: 6°
Optional Optics: Medium Filter, Wide Filter, Very Wide Filter, Asymmetrical Filter
Beam Angle: 6.5°
Field Angle: 11.6°
Cutoff Angle: 19.9°
Lumens: 7,045
Base Illuminance: 10,926 lux @ 5 m
Efficacy @ Full: 38 lm/W
Color Temperature Presets: 1,800K – 10,000K
Construction & Physical Specifications
Dimensions: 20.9 x 7.9 x 10.1 in (530 x 200 x 256 mm)
Weight: 27.6 lb (12.6 kg)
Fixture Color: Off white
Housing Material: Cast aluminum
Lens Cover: Impact resistant glass
Mounting Options: Bracket, Hole Diameter 13M
Control Specifications
Control Protocol: USITT DMX-512a, RDM
Operating Modes: Selectable personalities
Solid (1-Channel)
Arc 1 (3-Channel)
Arc 1+D (4-Channel)
Arc 2 (4-Channel)
Arc 2+D (5-Channel)
Arc Full (8-Channel)
Special 1 (15-Channel)
Special 2 (9-Channel)
Standalone Control: Yes
Fixture setup: RDM Only
Recommended control cable specification: Gepco DLC224
Data Connection: 6.25 ft (1.9 m) Waterproof cable Bare-wired to hard-wired
Electrical System Specifications
Input Voltage: 100 to 277 VAC, 50/60 Hz (auto-ranging)
Power and Current:
184 W, 1.54 A @ 120 V, 60 Hz, PF: 0.98
178 W, 0.93 A @ 208 V, 60 Hz, PF: 0.91
177 W, 0.84 A @ 230 V, 50 Hz, PF: 0.90
177 W, 0.79 A @ 277 V, 60 Hz, PF: 0.79
Power Supply: Electronic internal
Dimmer: Electronic
Power Connection: 6.25 ft (1.9 m) Waterproof cable Bare-wired to hard-wired
Recommended Power Cable: 14 AWG (3x 2.08 mm2)
Thermal Specifications
Cooling: Convection
Startup Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
Operating Temperature Range: -40 °F to 113 °F (-40 °C to 45 °C)
Maximum Surface Temperature: 167 °F (75 °C)
Minimum Distance to Illuminated Surface: 3.28ft (1 m)
Minimum Distance to Flammable Surface: 0.98ft (0.3 m)
BTU Ratings:
628 BTUs/hr @ 120 V, 60 Hz
607 BTUs/hr @ 208 V, 60 Hz
604 BTUs/hr @ 230 V, 50 Hz
604 BTUs/hr @ 277 V, 50 Hz
Regulatory & Voluntary Qualification
Certification Listings: MET, CE, RoHS, FCC, CB
Impact Resistance Rating: IK10
Vibration Rating: 3G
Wind Load Rating – EPA: 1.044 ft²
Environment: IP67, outdoor/wet, with pressure equalizing M12 GORE valve
Please refer to the User Manual for more detailed information on installation.
Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
Installation Orientation: Any
Accessories
Required: RDM Device
Included: Filter Frame
Optional: Medium Filter (20°), Wide Filter (40°), Very Wide Filter (55°), Asymmetrical Filter (60° x 10°)
Order Code
Ilumipanel ML: ILUMIPANELML
Ilumipanel ML Medium Spread Filter: ILUMIPANELMLM
Ilumipanel ML Wide Spread Filter: ILUMIPANELMLW
Ilumipanel ML Very Wide Spread Filter: ILUMIPANELMLVW
Ilumipanel ML Asymmetrical Spread Filter: ILUMIPANELMLASYM
