System Includes

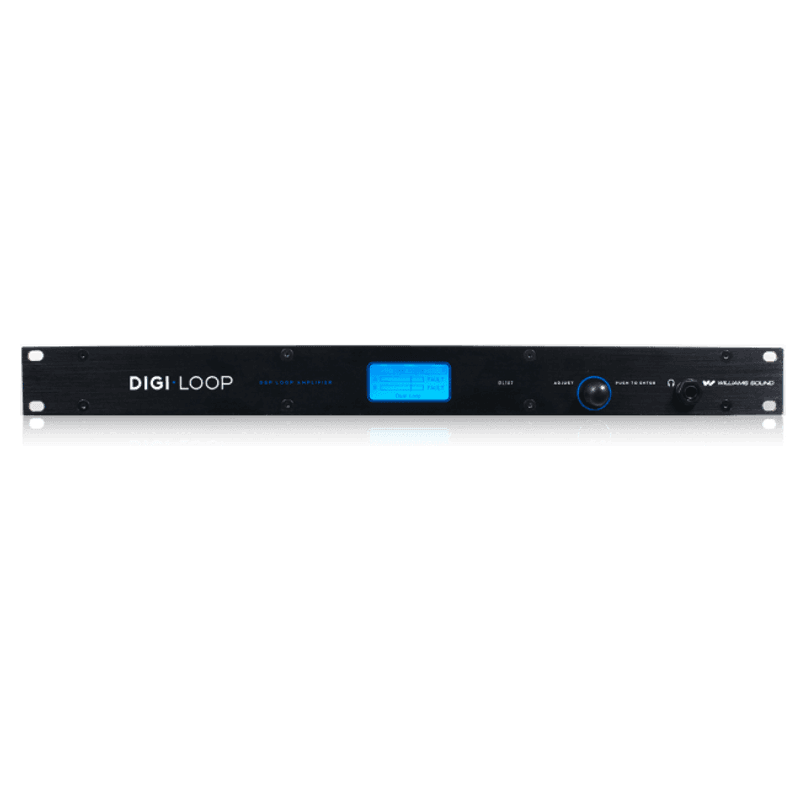

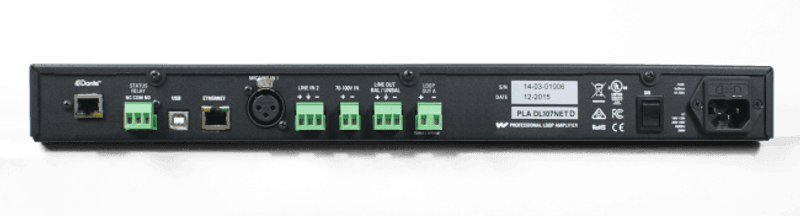

(1) PLA DL107 NET D Loop Amplifier
(1) WLC 004 Line Cord (US)
(1) IDP 009 ADA Wall Plaque (T-Coil)
Features
Network control – allows control and calibration of unit remotely with application software
High continuous current 9.5 Arms (13.4 Apk) per output continuous
LCD Screen with VU metering, easy one-button menu control
DSP Audio Processing
Dante™ Input (“D” models)
USB for firmware updates
Input mixing, parametric equalization, compression, metal compensation, high and low-pass filters, AGC and audio delay
Power-save mode
Adjustable output delay for multiple amps in large venues
Fault warning and active protection against shorted or open circuits and overheating
Loop fault relay output
XLR and 3-position terminal block input configurable as microphone input or line-input, balanced or unbalanced.
Standard 1 RU, 19” rackmount
Magnetic signal couples directly to devices equipped with telecoils (T-coils) such as hearing aids, cochlear implants, or optional loop receivers.
DL207 suitable for phased-array or dual-loop systems; DL107 suitable for perimeter loop or single array.
Phased-array mode automatically produces 90° phase shift in slave loop output
Meets IEC 60118-4 system performance requirements when integrated into a correctly designed and installed system.
Meets IEC Specification 60118-4 (when designed and commissioned properly)
Tested to IEC Specifications 62489-1 Benchmark Standards
