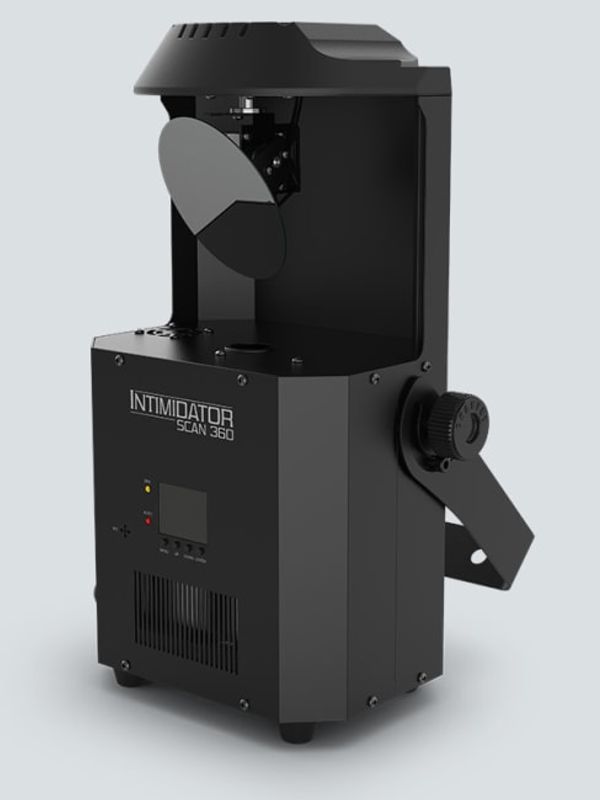

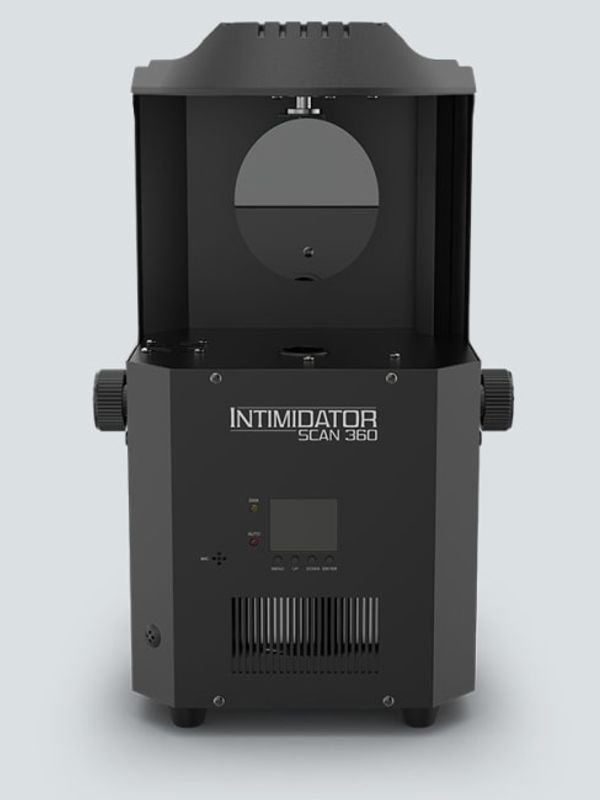

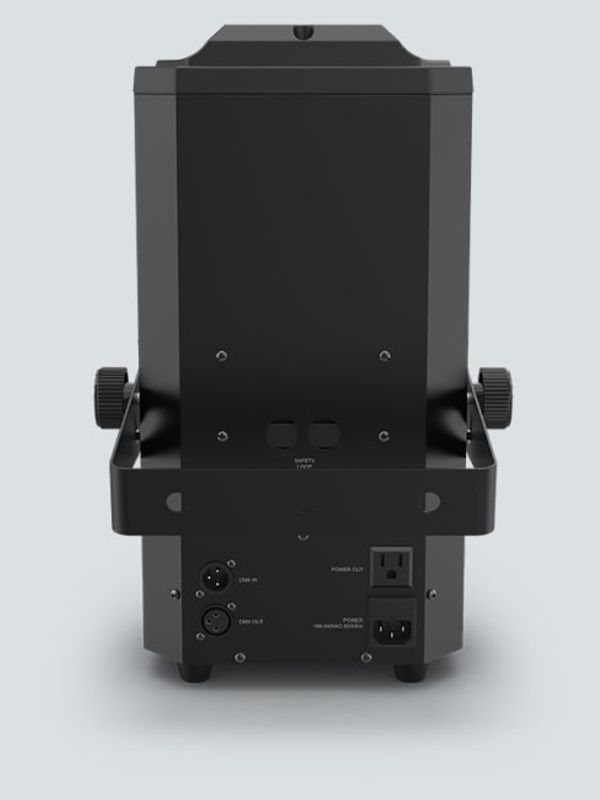

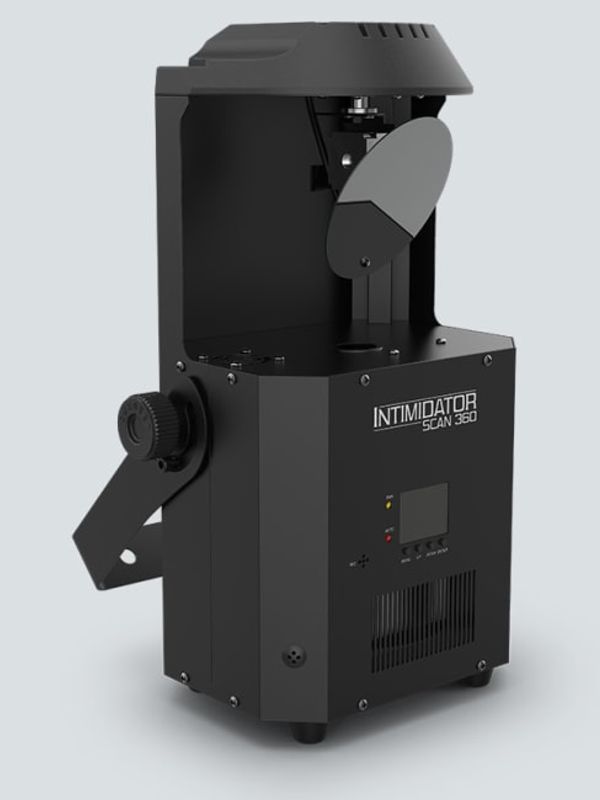

Intimidator Scan 360 scanner
It’s a bright, compact LED scanner with a crisp, 3-sided prism that duplicates the beam for great effects and a larger coverage area. Its high-frequency LED dimming allows for flicker-free video operation, and it’s packed with tons of features to enhance any show. It features a motorized focus for crisp gobos, sound-activated programs, and built-in automated programs for a synchronized show in master/slave mode. Plus, you can power link up to 4 units and save time running cables and extension cords.
-
Bright and compact LED scanner packed with features to enhance any show
-
Increase design flexibility and effects with interchangeable, rotating gobos plus separate, saturated colors
-
Minimize programming time with built-in movement macros and move-in-black features
-
Project crisp gobo from nearly any distance with the motorized focus
-
Increase effects with electronic dimming and strobe features
-
Split the beam and cover larger areas with the crisp, 3-facet prism
-
Continuous shows with individual reset of pan/tilt, color, gobo, prism
-
Achieve flicker-free video operation with high-frequency LED dimming
-
Save time running cables and extension cords by power linking multiple units (US version only)
-
Sound-activated programs dance to the beat of the music
-
Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs
- DMX Channels: 8 or 11
- DMX Connectors: 3-pin XLR
- Pan and Tilt: 180°/90°
- Colors: 8 + white, split colors, continuous scroll at variable speeds
- Gobos: 7 + open (5 metal + 2 glass), rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
- Light Source: 1 LED (white) 60 W (14.9 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 21°
- Illuminance: 2,850 lux @ 2 m
- Power Linking: 3 units @ 120 V; 7 units @ 230 V
- Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
- Power and Current: 236 W, 2 A @ 120 V, 60 Hz
237 W, 1 A @ 230 V, 50 Hz - Gobo Size: 23.8 mm outside, 20.9 mm image, 2 mm max thickness
- Weight: 14.7 lb (6.7 kg)
- Dimensions: 11 x 10 x 18.9 in (279 x 254 x 478 mm)
- Approvals: CE, MET
| Generelle spesifikasjoner | |
|---|---|
| IP-klasse | IP 20 |
| Produktets nettovekt | 5.7 Kg |
| Farge | Sort |
| Produktserie | Intimidator |
| Produsentens varenummer | INTIMSCAN360 |
| Lys | |
|---|---|
| DMX | 3-pin |
| Lyskilde | Hvit LED |
| Lumen | 4,050 lux @ 2 m |
| Type lys | Scanner |
