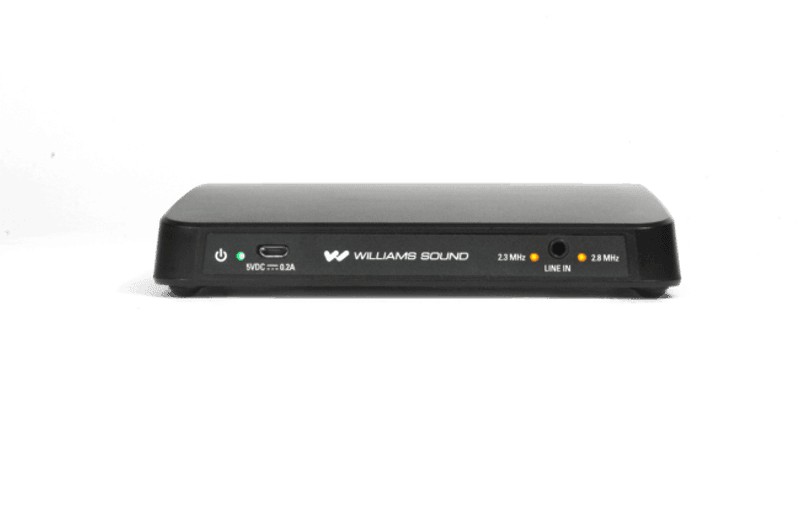

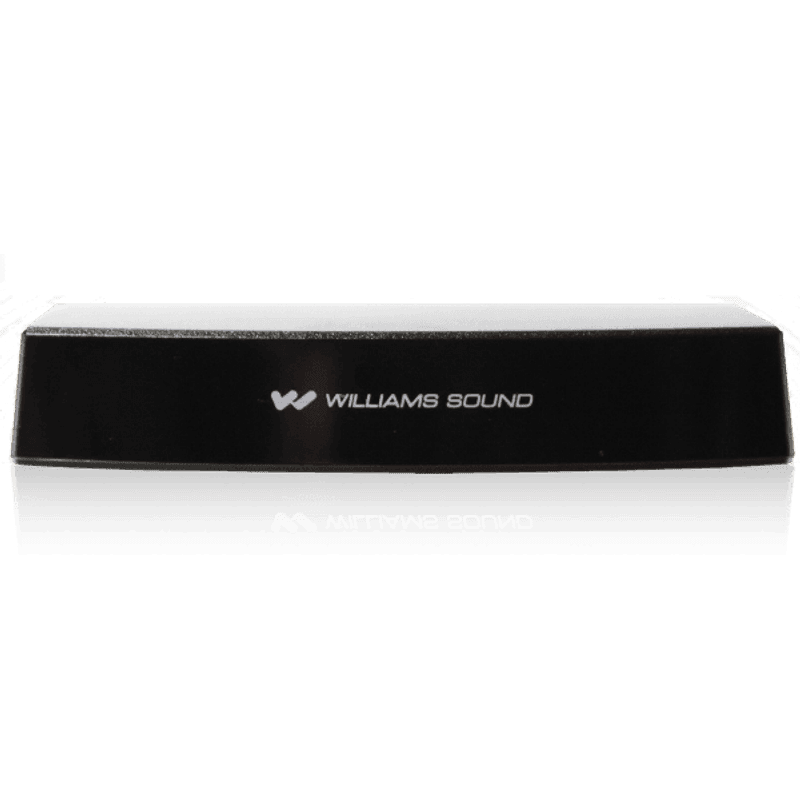

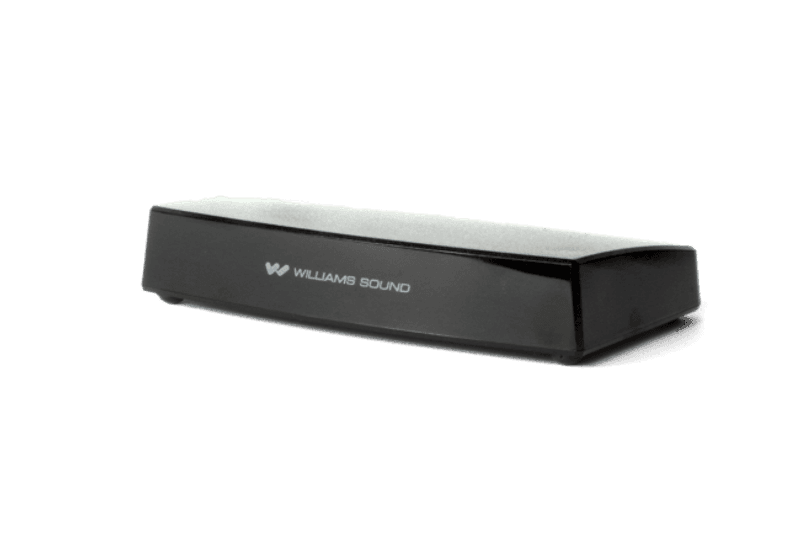

he IR T1 is a two-channel small area infrared transmitter combining infrared modulator and emitter technology into a single mountable enclosure—which reduces operating costs, eliminates the need for rack space and eases set-up.
The IR T1 is ideal for high quality audio programs such as music, television audio, and audio description. The IR T1 will accept any line level stereo audio input. Infrared receivers detect the transmission and convert the light signals back into audio signals. The IR T1 operating frequencies (2.3/2.8 MHz) minimize high efficiency lighting interference.
IR T1
Dimensions:
Width: 5.65”(14.4 cm), Depth: 3.65”(9.3 cm), Height: 1.15”(2.9 cm)
Weight:
8.3 oz (235 g)
Color:
Black
Power Supply:
TFP 055 – 100-240VAC 50/60Hz Input; 5VDC, 1A USB Output, Universal Supply with international adapters
Other USB Power Supply (must be at least 5VDC, 0.2A)
Power Cable:
USB to micro USB cable
DC Power Input:
Micro USB connector, 5VDC, 0.2A
Power Indicator:
Green LED
Sleep/Power Save Mode:
Shuts off carrier when no audio present for 12 minutes
Modulation:
FM Wideband, ±50 kHz deviation max, 50 ?S pre-emphasis
Carrier Frequencies:
2.3MHz (Ch 1) and 2.8MHz (Ch 2)
Default at power on = carriers off. Carriers are automatically enabled upon presence of audio.
Coverage Area:
1,300 sq. ft (120 sq. m.) with the WIR RX22-4
1000 sq. ft. (93 sq. m.) with the IR RX20
Audio Inputs:
3.5mm stereo line level input jack, Ch 1 connected to tip, Ch 2 connected to ring, GND connected to sleeve
Audio Indicators:
One Yellow LED per channel, lights up and stays on steady with minimum audio level.
Signal-to-Noise Ratio:
70 dB at onset of limiting
Frequency Response:
100 – 12,000 Hz
Operating Requirements:
32°-122°F (0-50°C)
Mounting Kit:
Optional: STD 008 TV Top Shelf Mounting Kit
Optional: BKT 024 Omnidirectional mount for wall or ceiling mounting
Compatible Receivers:
WIR RX22-4, IR RX20
Warranty:
2 years
Approvals/Regulatory Compliance:
CE, RCM, FCC, Industry Canada, PSE, CUL, WEEE, RoHS, CB Scheme
