PROJECTOR TYPE
LCD projector
LCD Panel
Panel size
16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
Display System
Transparent LCD panel (x 3, R/G/B)
Drive Method
Active matrix
pixels
2,304,000 (1920 x 1200) pixels
Light source
Laser diodes
Light output*1*2
7,000 lm
Time until light output declines to 50 %*3
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
Resolution
WUXGA (1920 x 1200 pixels)
Contrast ratio*1
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
Screen size (diagonal)
0.76–7.62 m (30–300 in), 16:10 aspect ratio
Center-to-corner zone ratio*1
85 %
Lens
1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F 1.60–2.12, f 15.30–24.64 mm
LENS SHIFT
(From the origin point of the lens mounter)
Vertical
+44 %, 0 % (manual)
Horizontal
+20 %, -20 % (manual)
Keystone correction range
Vertical: ±25 °, Horizontal: ±35 °
Installation
Ceiling/floor, front/rear, free 360-degree installation

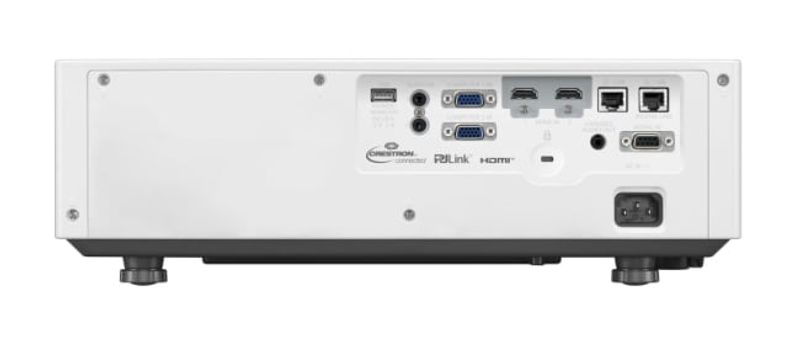

TERMINALS
HDMI IN
HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p*4 signal input), CEC supported
Computer 1 In
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Computer 2 In
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
AUDIO 1/2 IN
M3 stereo mini-jack x 2
Variable Audio Out
M3 stereo mini-jack x 1
Serial In
D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
DIGITAL LINK/LAN
RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control)
(HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2],
HDCP, Deep Color, 4K/30p*4 signal input)
LAN
RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2]
USB(VIEWER/WIRELESS/DC OUT)
USB connector (Type A) x 1 for Memory Viewer function, optional Wireless Module AJ-WM50 Series, power supply (DC 5 V, maximum 2 A*5)
POWER SUPPLY
AC 100 V–240 V, 50/60 HZ
Power consumption
420 W(TBD)
Cabinet materials
Molded plastic
Filter*6
Included (Estimated maintenance time: approx. 20,000 hours)
Operation noise*1
39 dB (NORMAL/ECO), 29 dB (QUIET)
Dimensions
(W x H x D)
399 mm x 115 mm x 348 mm (15 23/32? x 4 17/32? x 13 11/16? ) (not including protruding parts)
399 mm x 133 mm x 348 mm (15 23/32? x 5 1/4? x 13 11/16? ) (with feet at shortest position)
Weight with supplied lens*7
Approx. 7.2 kg (15.87 lbs)
Operating environment
Operating temperature: 0–45 °C (32–113 °F)*8*9, Operating humidity: 20–80 % (no condensation)
Applicable software
Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows®*10, Wireless Projector App for iOS/Android™*11
