Description

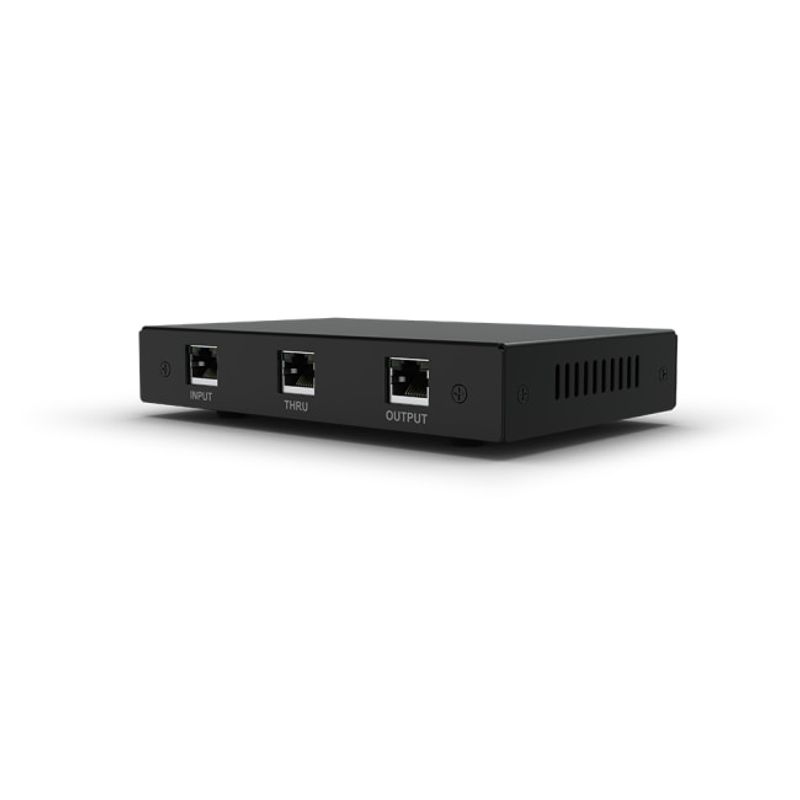

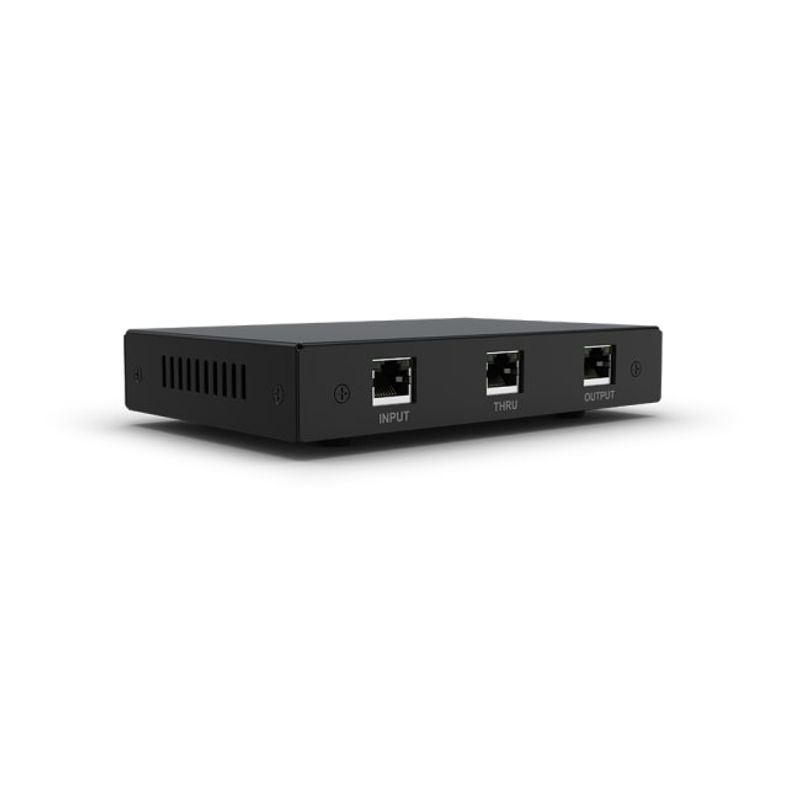

The Logic POEX is designed to convert power and signal coming from the Logic Drive 2X for select fixtures. It will support a maximum of 90 W, 75 W useable at the fixtures using 100 m of 23AWG Ethernet cable connected to the Logic Drive 2X. There is an additional through connector which is designed to link the control signal coming from the Drive 2X to additional fixtures, but not power. Additional POE power injectors are required for fixtures that require POE power out of the through port.
Specifications
Construction & Physical Specifications
Dimensions: 5.95 x 3.86 x 1.22in (15 x 98 x 31mm)
Weight: 1.1lb (.5kg)
Fixture Color: White
Housing Material: Steel (SPCC45)
Mounting Options: teardrop mounting holes
Control Specifications
Control Protocol: Logic Drive 2X
Fixture setup: Logic Drive 2X (RDM, webserver or display), Art-RDM (DMX Workshop)
Thermal Specifications
Cooling: Convection
Operating Temperature Range: -4°F to 113°F (-20°C to 45°C)
Maximum Surface Temperature: 158°F (70°C0
Minimum Distance to Flammable Surface: 11.8in (0.3m)
BTU/hr: 255
Regulatory & Voluntary Qualification
US SAfety: UL 62368-1
Canadian Safety: CSA 62368-1
Certification Listing: CE, MET, FCC, ROHS
Environment: Dry location, IP20, all indoor permanent installations
Please refer to the User Manual for more detailed information on installation
Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
Installation Orientation: Any
Electrical
Input Voltage: 53 VDC, POE++, IEEE 802.3bt, type 4 (via Logic Drive 2x)
Output Voltage: 52VDC
Power and Current (via Logic Drive 2X): 90W (75 W useable)
Power Supply: POE++, IEEE 802.3bt, type 4, (via Logic Drive 2X)
Power Linking: 1 unit via POE++, IEEE802.3bt, type 4, output to non-POE devices
Power/Data Connection: 3 Ethernet (RJ45)
Required Cable Specifications
Cable type: CAT6/A, shielded
Conductor Diameter: ?23 AWG (?0.5733mm)
Conductor Material: Solid Bare Copper Wire (stranded not supported)
Cable Terminator: RJ45, CAT6/A, Shielded
Cable Length(s) Supported:
Total Max Cable Length (Drive to POE X): ?100m / 328ft
Total Max Cable Length (POE X to first fixture): ?15.24m / 50ft
Total Max Cable Length (First fixture to last fixture): ?46m / 150ft
Total Max Cable Length (Drive to last fixture): ?145m / 475ft
Recommended Ethernet Cable for POE connections (or equivalent): Belden 2413F, 2412F
Accessories
Required
Logic Drive 2X
Order Code
Logic POE X Power Data Adapter: LOGICPOEX
