Features
Wall-Mounted Control Station
Recall up to 8 Different Scenes
Control Brightness

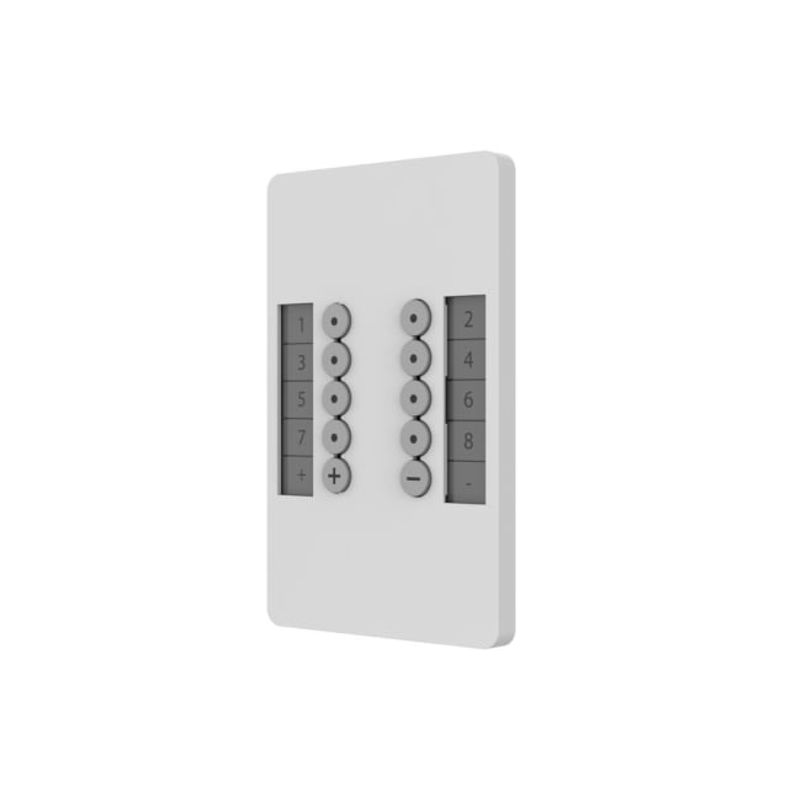

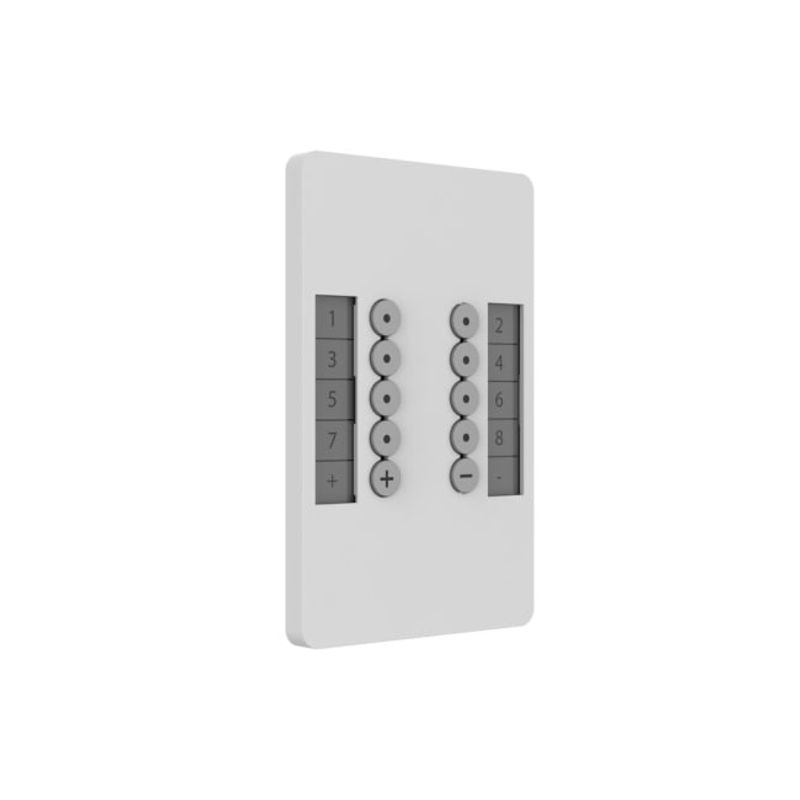

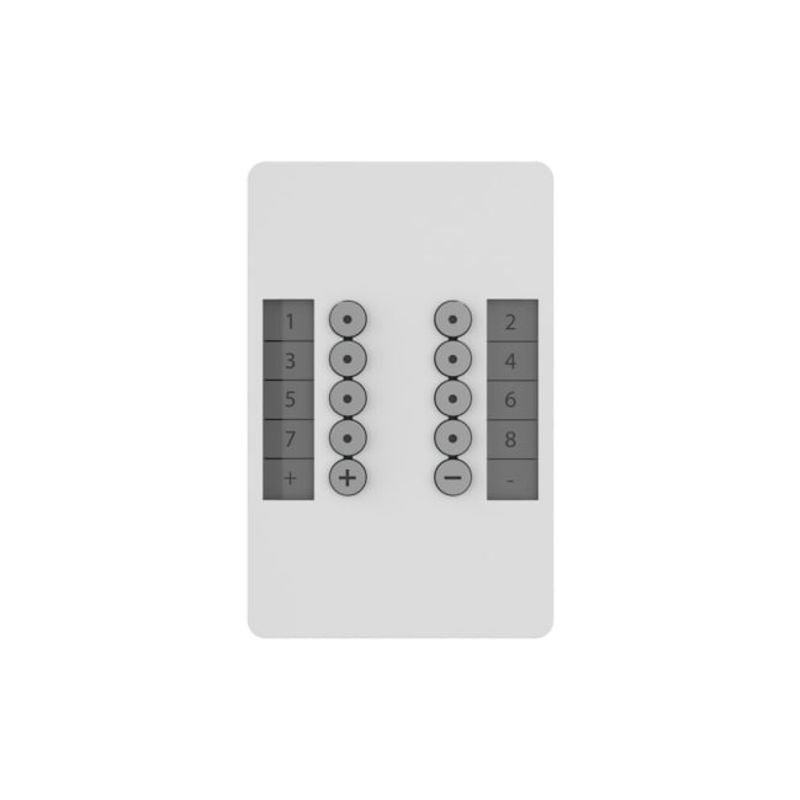

10 Backlit Buttons
Four Stations on a Single Drive 2X
Description
The Logic Wall Controller is a sleek control station designed to control Logic lighting fixtures. Set any ambiance with up to 8 recorded scenes and adjust the brightness all from convenience of this wall mounted controller. Featuring 10 backlight buttons. The Logic Wall Controller must be connected to the Logic Drive 2x.
Specifications
Construction & Physical Specifications
Dimensions: 4.88 x 3.11 x 1.36in (124 x 79.2 x 34.5mm)
Weight: 2.8oz (80g)
Fixture Color: White
Housing Material: Plastic
Mounting Options: single gang wall box
Control Specifications
Control Protocol: Proprietary (via Logic Drive 2X)

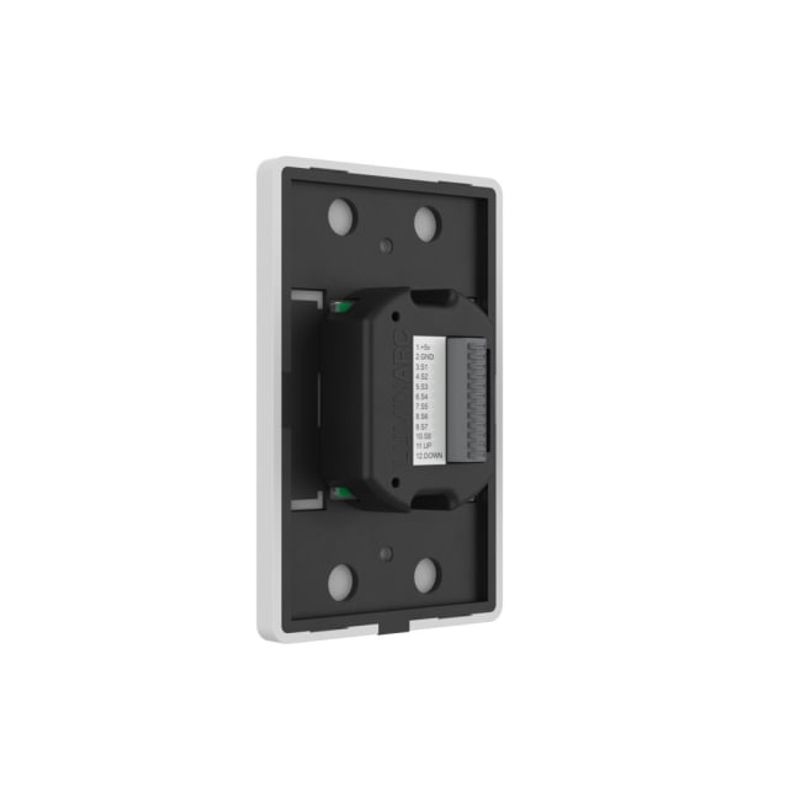

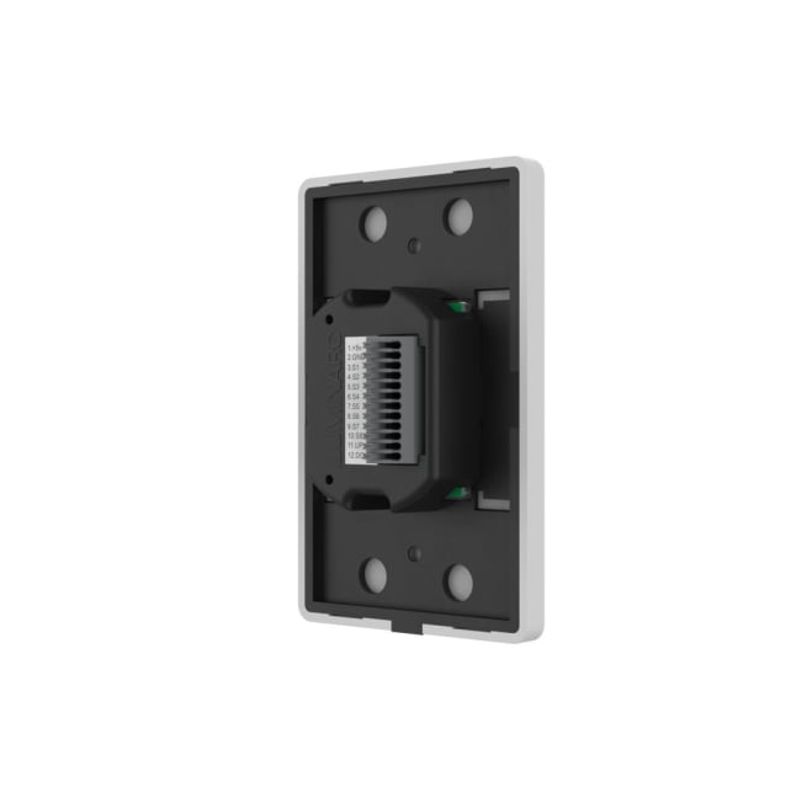

Device Outputs: 1 Phoenix (12-conductor)
Maximum Parallel Connections: Up to 4 stations on a single Drive 2X
Electrical
Input Voltage: 5 VDC (via Logic Drive 2X)
Power Supply: Directly via Logic Drive 2X
Recommended Cable: 12 conductors
Total Max Cable Length (fixture to fixture): 328ft (100m)
Cable Connector Max/Min Diameter: 22-24 AWG 8 conductor (shielded)
Distances <50ft (15m): 23-24 AWG (shielded or unshielded)
Distances 50-328ft (15-100m): 23 AWG (shielded)
Thermal Specifications
Cooling: Convection
Operating Temperature Range: -4°F to 113°F (-20°C to 45°C)
Regulatory & Voluntary Qualification
US Safety: UL 62368-1
Canadian Safety: CSA 62368-1
Certification Listings: CE, MET, FCC, ROHS
Environment: Dry location, IP20, all indoor permanent installations
Please refer to the User Manual for more detailed information on installation
Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
Installation Orientation: Any
Accessories
Required: Logic Drive 2X
Order Code
Logic Wall Controller: LOGICWALLCON
