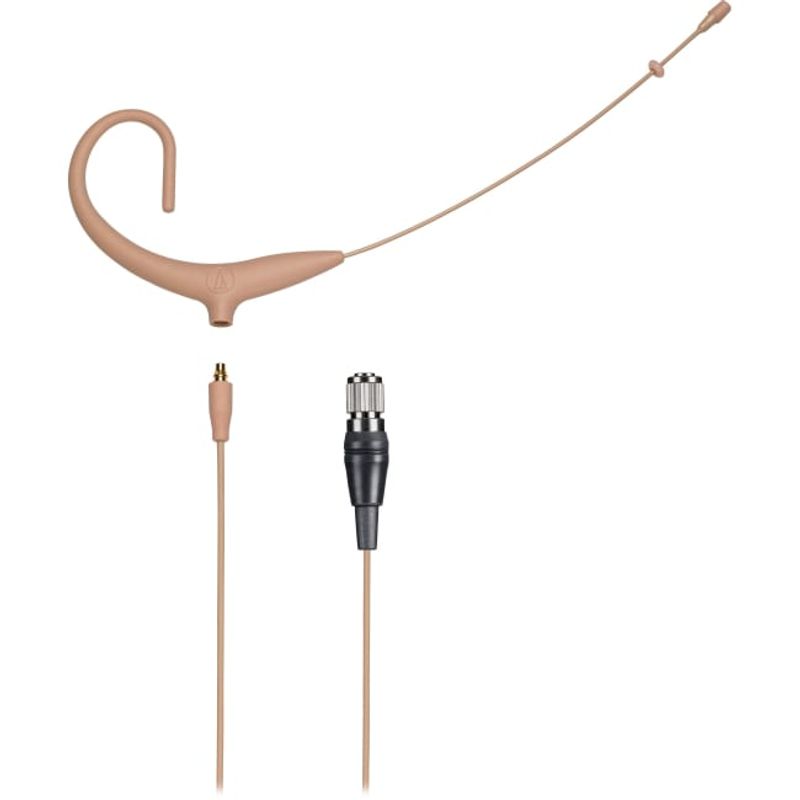

BP892xcH-TH
- Subminiature omnidirectional condenser capsule offers extremely intelligible, natural vocal reproduction
- BP892xcH-TH is a beige color model and is constructed of hypoallergenic materials
- An inconspicuous, lightweight headset with a capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
- Ergonomic under-ear design - the flexible, lightweight, contoured loop hooks behind the ear for an ultra-secure, comfortable fit even for those wearing glasses
- Detachable, field-replaceable cable with a robust connector at the earset and a variety of available output terminations
- Handles high sound pressure levels with ease
- Equipped with cH-style screw-down 4-pin termination for Audio-Technica wireless systems

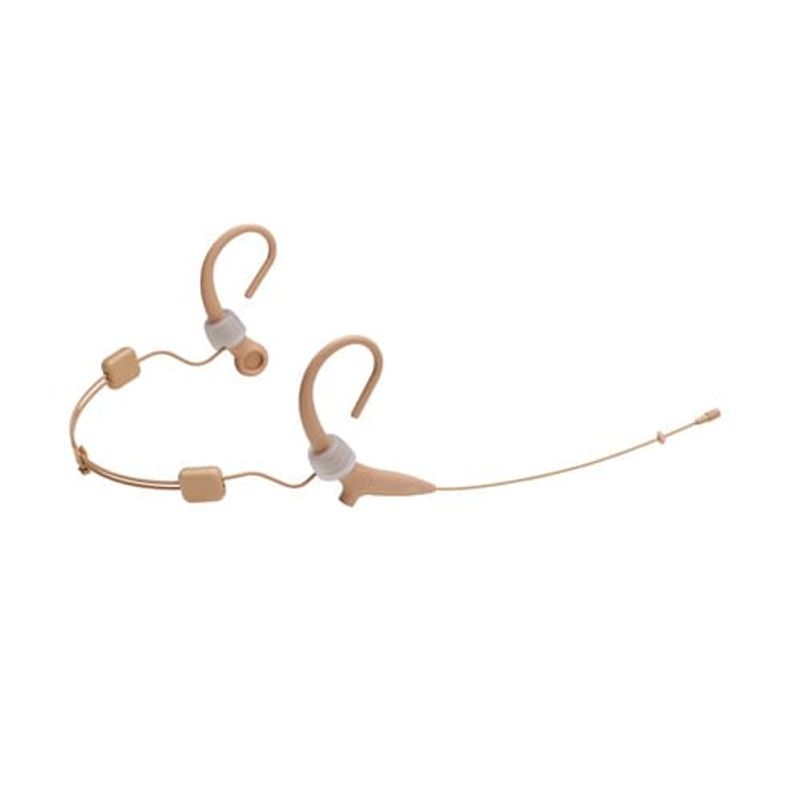

- Comes with the AT8464x Dual-Ear Adapter Kit that converts the single-ear MicroSet to a unit that's worn on both ears for maximum stability and comfort
The BP892xcH-TH includes a 1.4 m permanently attached miniature cable. Its end connects to a screw-down 4-pin connector. The connector is also compatible with Audio-Technica cH-type body-pack transmitters.
BP892xcH-TH Specifications
|
Element |
Fixed-charge back plate, permanently polarized condenser |
|
Polar Pattern |
Omnidirectional |
|
Frequency Response |
20 ~ 20,000 Hz |
|
Open Circuit Sensitivity |
-43 dB (7.2 mV) re 1V at 1 Pa |
|
Maximum Input Sound Level |
136 dB SPL, 1 kHz at 1% T.H.D. |
|
Signal-To-Noise Ratio |
63 dB, 1 kHz at 1 Pa |
|
Current Consumption |
0.1mA typical at 5V |
|
Power Supply |
2.5 ~ 11V |
|
Weight |
Microphone, boom & earpiece: 2.6 g |
|
Dimensions |
Microphone: 9.5 mm long, 2.6 mm diameter |
|
Output Connector |
cH-style screw-down 4-pin connector |
|
Cable |
1.4 m long, 1.6 mm diameter, 2-conductor shielded cable |
|
Accessories Furnished |
AT8440 cable clip; |
|
Colour |
Beige |
