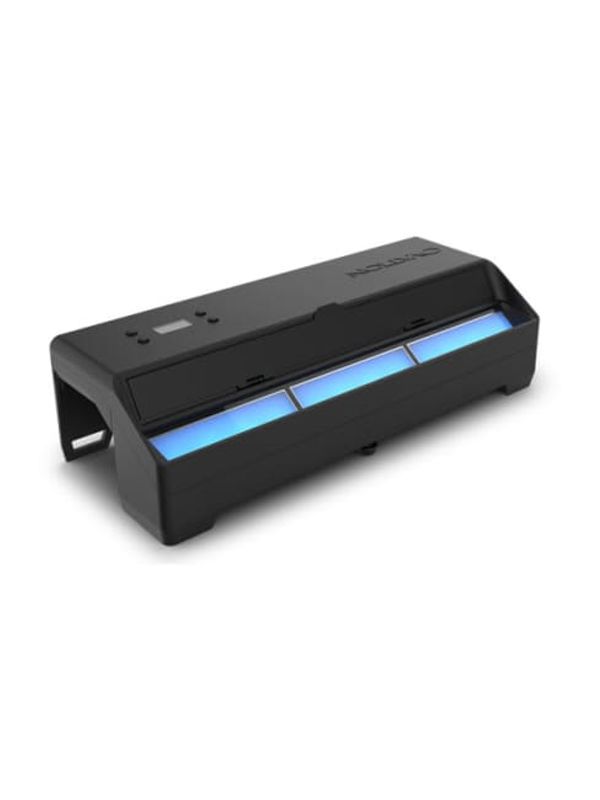

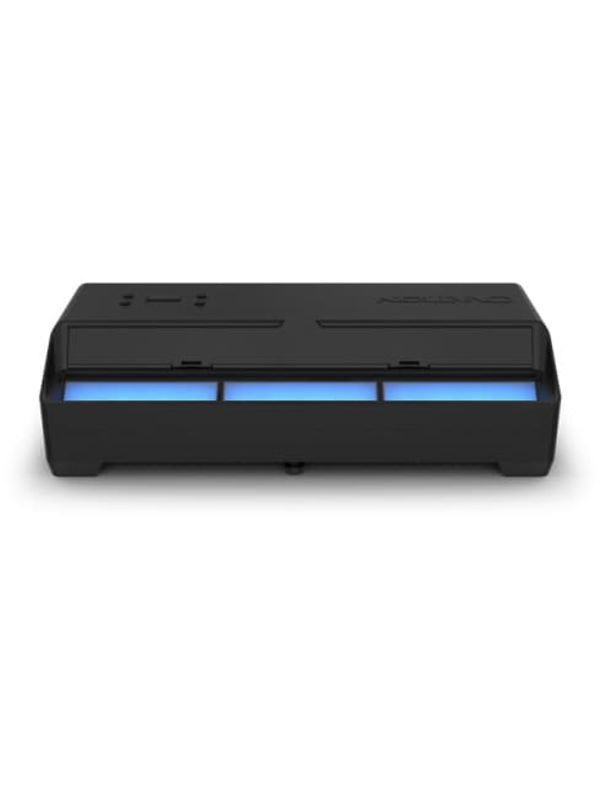

Ovation CYC 1 FC is an incredibly sleek, discreet, and lightweight CYC that delivers a wide, smooth field of light with significant reach. Completely convection-cooled, the unit is ideal for applications where silent operation is critical. Ovation Cyc 1 FC features the advanced RGBAL color-mixing system found in our other Full-Color Ovation units to render nearly any color with tremendous realism and saturation. Given the low profile of the unit, it can also be used effectively as a footlight. The versatile fixture has an integrated kickstand and included glare shield that can adjust and shape its throw and also features an included omega bracket.
-
Low-profile and lightweight cyclorama wash or footlight fixture
-
Display a full spectrum of hues with RGBAL LEDs for theatre, film, and production
-
Theatre-ready with 16-bit dimming of master dimmer and individual colors
-
Beam modification with built-in “kickstand” and adjustable glare shield
-
Flat, even field of light with superior color mixing
-
Virtual Color wheel with color matched to popular gel colors, and color temperature presets
-
RDM (Remote Device Management) for added flexibility
-
Adjustable PWM (Pulse Width Modulation) to avoid flickering on the camera
-
Silent operation for use in studio and theatre applications
OPTICAL
- Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 1.75 to 4.57 W, (1.4 A), 6935 K, 50,000 hours life expectancy.
- Color Temperature (range): 2800 to 6500 K
- CRI (3200 K): 90.6
- Beam Angle: 81.1° (Horizontal)
- Beam Angle: 87.1° (Vertical)
- Field Angle: 124.6° (Horizontal)
- Field Angle: 148.1° (Vertical)
- Lumens: 8,966
- Illuminance: 210 lux @ 5 m
- PWM Frequency: 600, 1200, 2000, 4000, 6000, 25,000 Hz
DYNAMIC EFFECTS
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 27 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No
CONSTRUCTION / PHYSICAL
- Dimensions: 16.14 x 6.29 x 4.33 in (410 x 160 x 110 mm)
- Weight: 9 lb (4.2 kg)
- Exterior Color: Black
- Housing Material: Aluminum die-cast
CONNECTIONS
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: DMX, RDM
- DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16 or HSV
- Modes/Personalities: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16 HSV)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 11 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
- Power and Current: 139 W, 1.14 A @ 120 V, 60 Hz
- Power and Current: 137 W, 0.64 A @ 208 V, 60 Hz
- Power and Current: 137 W, 0.58 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE, MET, FCC
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
- OVATION CYC-1FC
- Seetronic Powerkon IP65 power cord
- Omega bracket with mounting hardware
OPTIONAL ACCESSORIES
- Professional Clamps: CTC-50HC, CTC-50HCN
- Seetronic Powerkon IP65 power cables
- 3-pin or 5-pin DMX Cables
