| PROJECTOR TYPE | LCD projector |
|---|---|
| LCD Panel | |
| Panel size |
16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
|
Display System |
Transparent LCD panel (x 3, R/G/B) |
| Drive Method | Active matrix |
| pixels |
2,304,000 (1920 x 1200) pixels |
|
Light source |
Laser diodes |
|
Light output*1*2 |
5,200 lm |
|
Time until light output declines to 50 %*3 |
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO) |
| Resolution |
WUXGA (1920 x 1200 pixels) |
|
Contrast ratio*1 |
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
| Screen size (diagonal) |
0.76–7.62 m (30–300 in), 16:10 aspect ratio |
| Center-to-corner zone ratio*1 | 85 % |
| Lens |
1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F 1.60–2.12, f 15.30–24.64 mm |
| LENS SHIFT (From the origin point of the lens mounter) |
|
| Vertical |
+44 %, 0 % (manual) |
| Horizontal |
+20 %, -20 % (manual) |
| Keystone correction range | Vertical: ±25 °, Horizontal: ±35 ° |
| Installation |
Ceiling/floor, front/rear, free 360-degree installation |

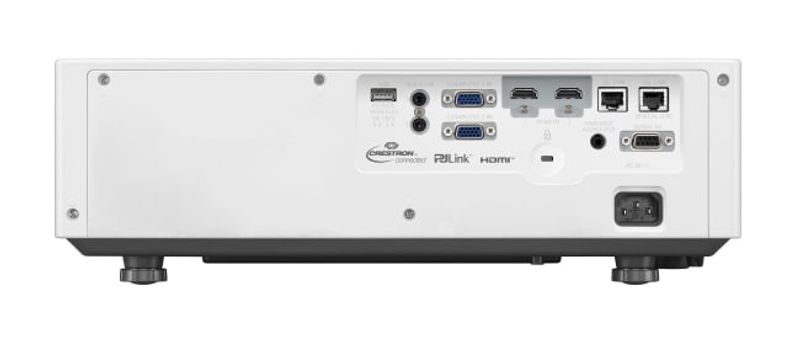

| TERMINALS | |
| HDMI IN |
HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p*4 signal input), CEC supported |
| Computer 1 In |
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Computer 2 In |
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| AUDIO 1/2 IN |
M3 stereo mini-jack x 2 |
| Variable Audio Out |
M3 stereo mini-jack x 1 |
| Serial In |
D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
| DIGITAL LINK/LAN |
RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) |
| LAN |
RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2] |
| USB(VIEWER/WIRELESS/DC OUT) |
USB connector (Type A) x 1 for Memory Viewer function, optional Wireless Module AJ-WM50 Series, power supply (DC 5 V, maximum 2 A*5) |
| POWER SUPPLY | AC 100 V–240 V, 50/60 HZ |
|
Power consumption |
320 W (TBD) |
|
Cabinet materials |
Molded plastic |
| Filter*6 | Included (Estimated maintenance time: approx. 20,000 hours) |
|
Operation noise*1 |
37 dB (NORMAL/ECO), 27 dB (QUIET) |
|
Dimensions |
399 mm x 115 mm x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝ ) (not including protruding parts) |
|
Weight with supplied lens*7 |
Approx. 6.5 kg (14.33 lbs) |
|
Operating environment |
Operating temperature: 0–45 °C (32–113 °F)*8*9, Operating humidity: 20–80 % (no condensation) |
|
Applicable software |
Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows®*10, Wireless Projector App for iOS/Android™*11 |
