Product Specifications

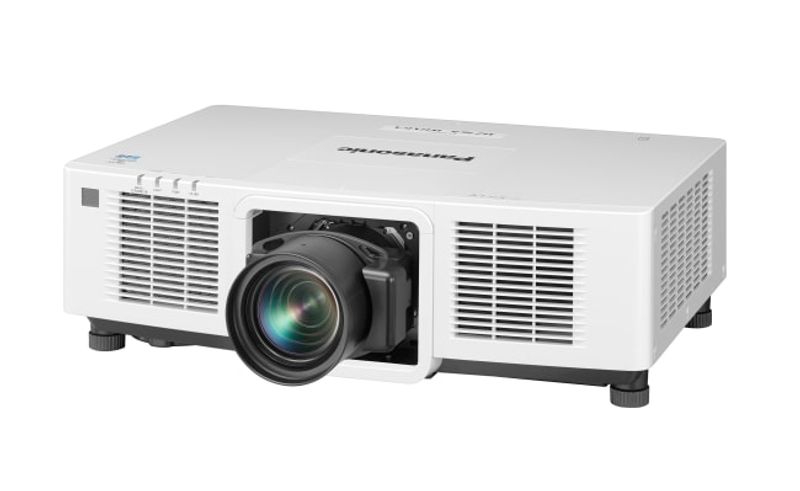

PT-MZ14KL
PROJECTOR TYPE
LCD projector
LCD Panel
Panel size
25.4 mm (1.0 in) diagonal (16:10 aspect ratio)
Display System
Transparent LCD panel (x 3, R/G/B)
Drive Method
Active matrix
pixels
2,304,000 (1920 x 1200) pixels
Light source
Laser diode
Light output*1*2
14,000 lm
Time until light output declines to 50 %*3
20,000 hours (NORMAL/QUIET)
Resolution
WUXGA (1920 x 1200 pixels)
Contrast ratio*1
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [3].)
Screen size (diagonal)
2.03–12.7 m (80–500 in), 2.54–10.16 m (100–400 in) with ET-EMU100 (TBD), 16:10 aspect ratio
Center-to-corner zone ratio*1
85 %
Lens
Optional (no lens included with this model)
LENS SHIFT
(From the origin point of the lens mounter)
Vertical
±60 % (+50 %, -20 % with ET-EMU100, ±40 % with ET-EMW200, ±50 % with ET-EMW300) (powered)
Horizontal
±20 % (±19 % with ET-EMW200) (powered)
Keystone correction range
Vertical: ±40 ° (±5 ° with ET-EMU100, ±14 ° with ET-EMW200/ET-EMW300, ±22 ° with ET-EMW400/ET-EMW500), Horizontal: ±40 ° (±0 ° with ET-EMU100, ±8 ° with ET-EMW200/ET-EMW300)
When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °.
Installation
Ceiling/floor, front/rear, free 360-degree installation
TERMINALS
SDI In
BNC x 1: 3G/HD-SDI input
HDMI In
HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input4), CEC supported
Serial/Multi Projector Sync In
D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Serial/Multi Projector Sync Out
D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
Remote 1 In
D-sub 9-pin (female) × 1 for external control (parallel)
Remote 2 In
M3 x 1 for wired remote control
Remote 2 Out
M3 x 1 for link control (for wired remote control)
DIGITAL LINK/LAN
RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input4 )
LAN
RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net)
DC Out
USB Connector (Type A) x 1 for power supply (Output 5 V/2 A)
USB
USB Connector (Type A) x 1 for service use
POWER SUPPLY
AC 100–240 V, 50/60 Hz
Power consumption
Max. Power Consumption: 720 W (7.2A-3A) (730 VA) (TBD)
[NORMAL] 670 W (TBD)
[QUIET] 470 W (TBD)
Cabinet materials
Molded plastic
Filter*6
Included (Estimated maintenance time: approx. 20,000 hours 5)
Operation noise*1
36 dB (NORMAL) (TBD)
31 dB (QUIET) (TBD)
Dimensions
(W x H x D)
Approx. 650 x 2116 x 440 mm7 (TBD)
Weight *8
Approx. 23.3 kg (51.6 lbs) (TBD)
Operating environment
Operating temperature: 0–45 °C (32–113 °F)9, operating humidity: 10–80 % (no condensation)
Applicable software
Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™
