Produktinformasjon:

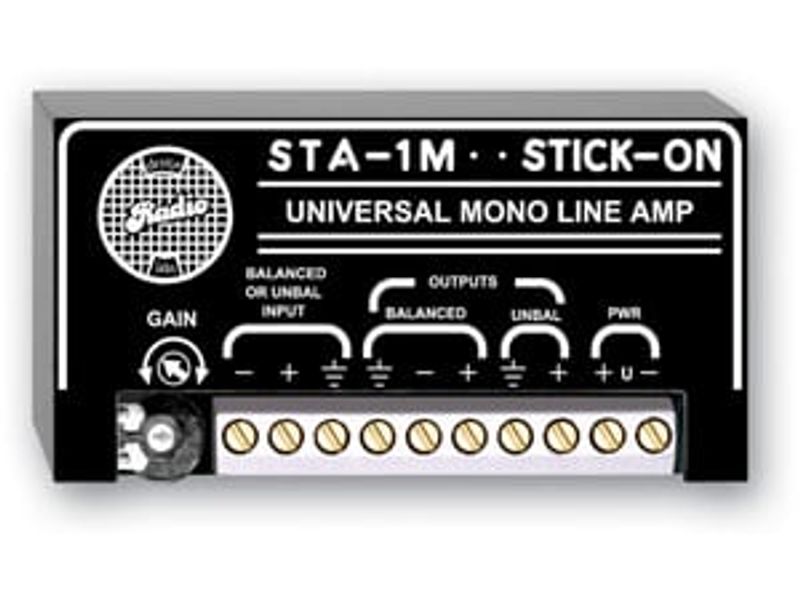

The STA-1M is a high quality, miniature wall and surface mount, mono-audio amplifier from RDL, designed for use in situations where balanced/unbalanced configuration conversion, impedance conversion, and level boost or cut are required.
The input accepts either high or low impedance, balanced or unbalanced signals. The output will drive into either high or low impedance loads, connected either balanced or unbalanced.
The durable adhesives provided with the STA-1M permit permanent or removable mounting.
The STA-1M is a high quality, miniature wall and surface mount, mono-audio amplifier from RDL, designed for use in situations where balanced/unbalanced configuration conversion, impedance conversion, and level boost or cut are required.
The input accepts either high or low impedance, balanced or unbalanced signals. The output will drive into either high or low impedance loads, connected either balanced or unbalanced.
The durable adhesives provided with the STA-1M permit permanent or removable mounting.
- Single-channel audio line amplifier
- Functions as an electronic transformer with isolation and gain (or loss)
- Impeccable audio quality with ultra-low distortion and noise
- Output level adjustable for all ranges of conversion between -10dBV and +4dBu signals
- Ample headroom at operating level
- Full operation in either high or low impedance circuits
- Outputs short-circuit protected
- Positive connections via barrier block - no audio connectors to wire
