Produktinformasjon:

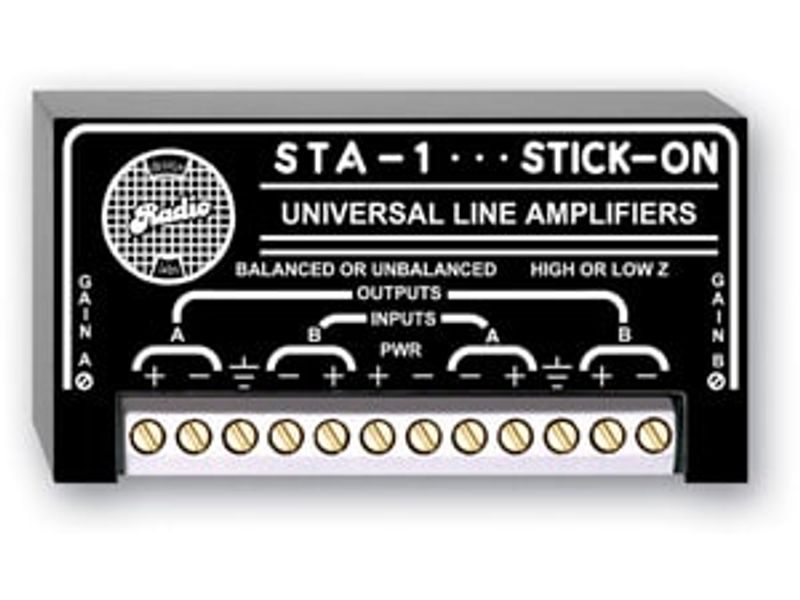

The STA-1 is a high quality, miniature wall and surface mount, dual-channel audio electronic line transformer and amplifier from RDL, designed for use in situations where balanced/unbalanced configuration conversion and level boost are required.
The input accepts either high or low impedance, balanced or unbalanced signals. The output will drive into either high or low impedance loads, connected either balanced or unbalanced.
The STA-1 is a high quality, miniature wall and surface mount, dual-channel audio electronic line transformer and amplifier from RDL, designed for use in situations where balanced/unbalanced configuration conversion and level boost are required.
The input accepts either high or low impedance, balanced or unbalanced signals. The output will drive into either high or low impedance loads, connected either balanced or unbalanced.
- Dual channel electronic transformer/line amplifier
- Up to 20dB of gain
- Provides -10dBV unbalanced to +4dBu balanced conversion
- No capacitors or transformers in the audio circuits
- True DC amplifiers provide impeccable audio quality, with ultra-low distortion and noise
- 18dB of headroom at operating level
- Multi-turn trimmers for precise level adjustment
- All inputs and outputs are RF bypassed
- Outputs short-circuit protected
- Positive connections via barrier block - no audio connectors to wire
