Features
Handheld tool for managing fixtures and systems with DMX, RDM, and Ilumicode based control
Easily address, locate and monitor RDM capable fixtures
Check DMX addressing, cabling, and store/playback basic snapshots
Address and set personalities of Ilumicode based architectural fixtures
Comes with connector adaptors, USB charging cord and belt clip pouch
Description

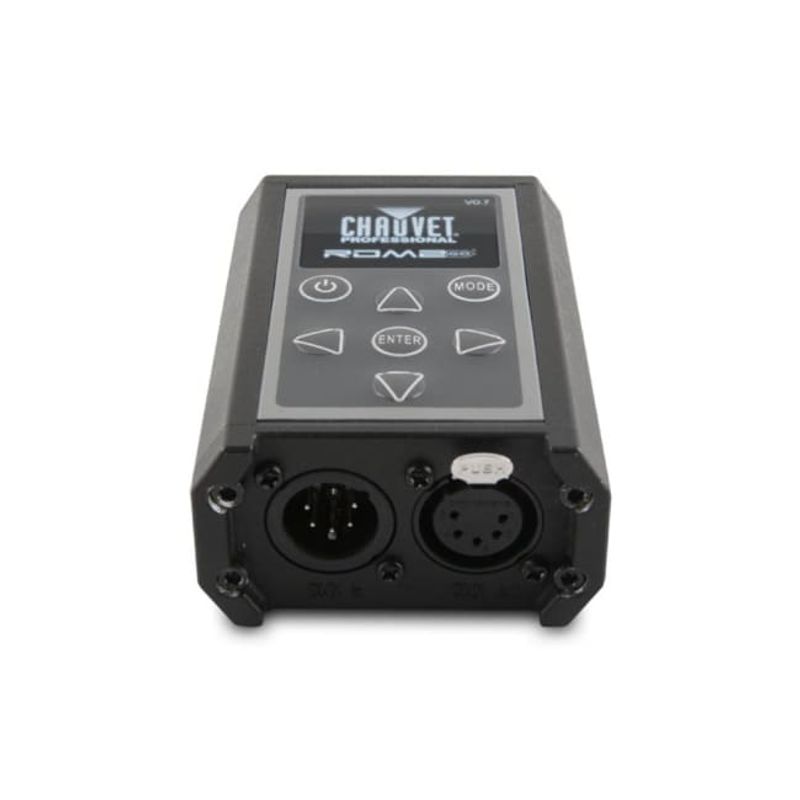

RDM2go is a multi-functional tool for working with fixtures over a DMX/RDM data line. This palm-sized controller performs a multitude of tasks including RDM functionality, DMX snapshot and test-scene record and playback, DMX input and output monitoring. RDM2go features a built-in DMX cable integrity checker, and an easy to read OLED display. The unit easily recharges via a standard micro USB jack and comes with a convenient carry pouch and DMX connector converters.
Specifications
Dynamic Effects
Standalone Color Mixing: Yes
Color Temperature Presets (Ilumicode): Yes
Dim Modes (Ilumicode): 5
Customizable Programs: Yes
Recall Custom Programs: Yes
Construction / Physical
Dimensions: 2.76 x 1.52 x 3.92 in (70 x 39 x 100 mm)
Weight: 0.77 lb (0.35 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Connections
Power Input: Micro USB-B Male
Data Connectors: 5-pin XLR
Cable Length (power): 3 ft (0.91 m)
Control
Protocol(s): DMX, RDM, Ilumicode
DMX Channels: 1, 2, 3, 4, 5, 6 or 7
Modes/Personalities (Ilumicode): 13 personalities (ARC 1, ARC 1+D, ARC2, ARC2+D, ARC3, ARC3+D, ARC FULL, REMOTE, SOLID, SPECIAL1, SPECIAL2, VW, VW+D)
Electrical
Power and Current: 18 W, 0.15 A @ 120 V, 60 Hz
Power and Current: 18 W, 0.09 A @ 208 V, 60 Hz
Power and Current: 18 W, 0.08 A @ 230 V, 50 Hz
Battery
Battery type: Lithium Ion
Rechargeable: Yes
Battery Life: 8 hours
Battery Power: 3.7 V, 1,200 mAh
Certifications / Qualifications
CE
IP Rating: IP20, dry location
What’s Included
RDM2go
Carry Pouch
2 pc, 3- to 5-pin converters
5-pin male to bare wire adaptor
USB-A Male to Micro USB-B Male (3 ft)
Accessories
Required
DMX Cables
Optional
DMX Cables
Order Code
RDM2go: RDM2GO
