The IPX-TC3A-WP3-Pro provides one of the most advanced IP Streaming solutions on the market utilizing SDVoE technology. It is the industry’s first 4K2K transceiver with zero compression (4K60 4:2:0, 4K30 4:4:4), lossless compression (4K60 4:4:4), and zero frame latency based on BlueRiver NT+ platform. Using a transmitter (encoder) and receiver (decoder), respectively, used to be the standard – until now. The IPX can be set up as either one to make installation, inventory, and troubleshooting easier. Another industry first is the option slot to add other IP capabilities, like ExtremeUSB® (USB 2.0 over IP) or Dante® audio, for a more complete, distributed system.
Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 10G Ethernet switches. When the IPX is set up to be a transmitter, the 2 HDMI inputs become a source switch and the HDMI output becomes a potential loop out. When set up as a receiver, a user can select the local HDMI inputs or an IP source. Seamless switching of the sources further enhances the presentation. Regardless of how the IPX is set up, the audio can be de-embedded at any location, break away, and/or be sent to or received from a Dante® enabled device. The USB 2.0 option is also flexible, working as a KVM and/or a high-speed data transfer (480Mbps) for memory sticks. Each IPX USB feature can also be set as a host or a device. To keep the system friendly, a customizable OSD and web server are available to be programmed as required. For RJ-45 LAN devices, the 1G Ethernet port allows full bandwidth end-to-end over the IPX 10G fiber or copper port.
Choice is important. That’s why the IPX-TC3A-Pro (IPX-TC3A-WP3-F-Pro version only) includes an SFP+ port that can use single or multi-mode fiber – making the IPX-TC3A-WP3-Pro the ultimate AV IP product on the market today.
Note: The selected network switch needs to support: 10Gbps, Non-blocking IGMP.
Compression
Zero (4K30 4:4:4/4K60 4:2:0), 1.3:1(4K60 4:4:4)
Latency
Zero Frame Latency (100us without Scaling, 3ms with Scaling)
Bandwidth
600MHz
HDCP
HDCP 2.2

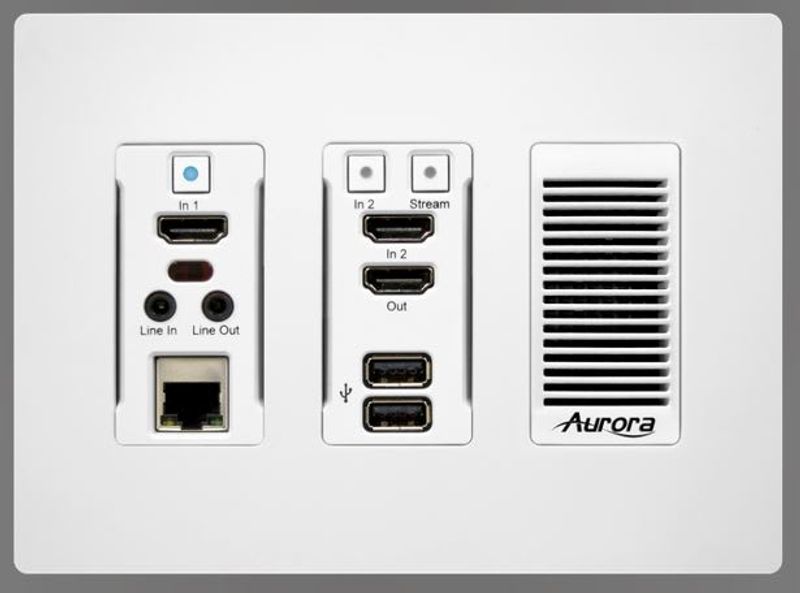

Connectors
HDMI
2 Inputs, 1 Output
Analog Audio
Stereo Line In/Out (3.5mm TRS Tip is Left, Ring is Right, Sleeve is Ground)
10G Ethernet (C Version)
10G Copper RJ-45 330ft CAT 6A PoE+
10G Ethernet (F Version)
10G Fiber SFP+ (DF Version)
1G Ethernet
(1) 10/100/1000M PoE+ (PSE)
RS-232
Up to 115k Baud (3.5mm TRS Tip TX, Ring RX, Sleeve Ground)
IR
Bi-Directional (3.5mm TRS Tip TX, Ring 5V, Sleeve Ground)
USB
2 x USB 2.0 Type A, 1 x USB 2.0 Micro

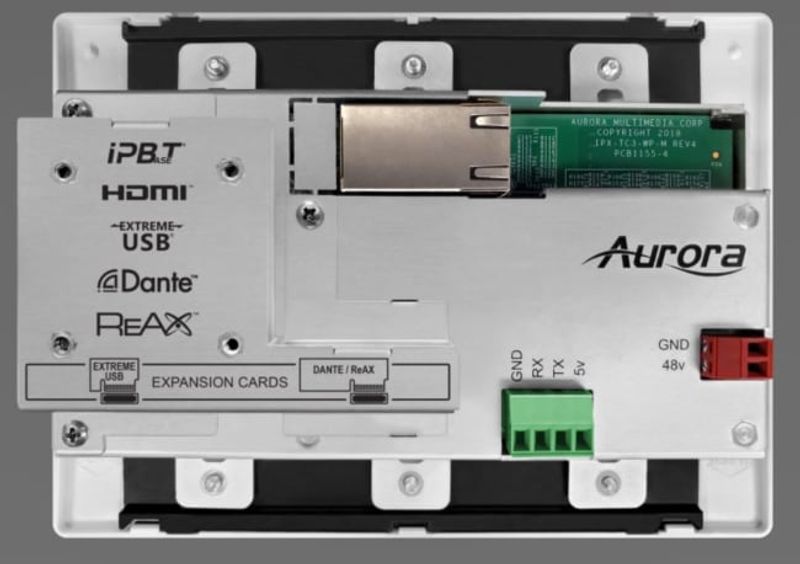

Expansion
ExtremeUSB, Dante and ReAX Options
Control
Webserver
Built-In Control Server
Management Software
IPBaseT Manager (free download)
3rd Party Control
Comprehensive Telnet API including Exclusive Aurora Wrapper Functions
Physical & Power
Mount
3-Gang wall box (Optional accessory LVR-3G 3-gang Low Voltage Mounting Bracket)
Power Supply
48V DC (2 pin Euro) or PoE+ 25.4W (LAN)
Power Consumption
12.9 Watts
Operating Temperature
0 ~ 40 Celsius [32 ~ 100 Farenheit]
Storage Temperature
-20 ~ 60 Celsius [-4 ~ 140 Farenheit]
Relative Humidity
20~90% RH [no condensation]
