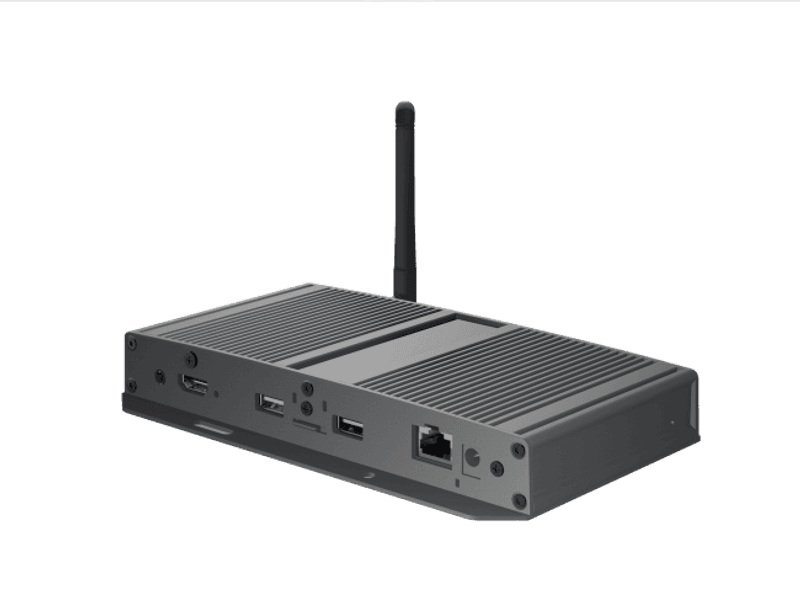

XMP-8552 har en kraftig quad-core-prosessor som leverer optimal ytelse, utmerket energisparing og nøye overvåking med watchdog-funksjonalitet. Enten den driver en interaktiv informasjonskiosk eller en skjerm, vil innholdet ditt alltid være i beste tilstand, dag etter dag.
Android 12
Den nyeste Android OS for bedre sikkerhet og optimal ytelse.
PoE
Strøm og tilkobling over en enkelt ledning for mindre kabelrot.
Wi-Fi tilkobling
Støtte for dual-band Wi-Fi for enkel trådløs overføring av innhold.
Touch support
Støtter berøring for interaktiv skjerm og selvbetjeningsskiosker.
Watchdog Timer
Overvåking av enheten døgnet rundt opprettholder enhetsstabilitet og drift.
Robust design
Holdbar mot krevende miljøer og et bredt temperaturområde.
| XMP-8550 (velg) | XMP-8552 | |
| Local Storage | 16 GB eMMC built-in Micro SD card (replaces internal storage) |
16 GB eMMC built-in Micro SD card (replaces internal storage) |
| Dimensions | 186 x 119 x 27.6mm / 7.32 x 4.69 x 1.09" | 186 x 119 x 27.6mm / 7.32 x 4.69 x 1.09" |
| Supported Video Formats | H.265/HEVC up to 4K (3840 x 2160) H.264/AVC up to 1080p (1920 x 1080) MPEG-4 up to 1080p (1920 x 1080) MPEG-2 up to 1080p (1920 x 1080) MPEG-1 up to 1080p (1920 x 1080) VC-1 up to 1080p (1920 x 1080) |
H.265/HEVC up to 4K (3840 x 2160) H.264/AVC up to 1080p (1920 x 1080) MPEG-4 up to 1080p (1920 x 1080) MPEG-2 up to 1080p (1920 x 1080) MPEG-1 up to 1080p (1920 x 1080) VC-1 up to 1080p (1920 x 1080) |
| Connectivity | IEEE 802.3ab Gigabit Ethernet | IEEE 802.3ab Gigabit Ethernet IEEE 802.11a/b/g/n/ac dual-band Wi-Fi IEEE 802.3af PoE |

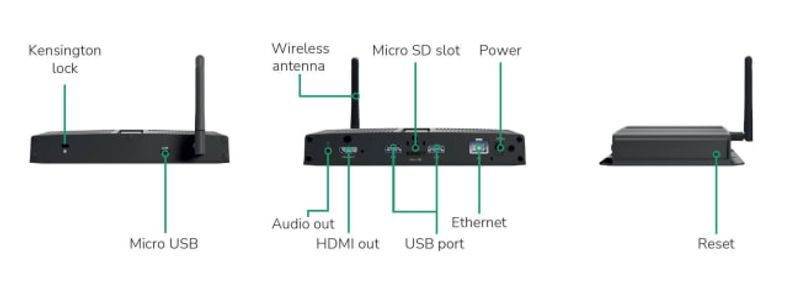

| Ports | Gigabit Ethernet port x 1 HDMI 2.0 (3840 x 2160 @ 60fps) x 1 Micro USB x 1 USB 2.0 x 1 USB 3.0 x 1 3.5 mm analog stereo audio out x 1 |
Gigabit Ethernet port x 1 HDMI 2.0 (3840 x 2160 @ 60fps) x 1 Micro USB x 1 USB 2.0 x 1 USB 3.0 x 1 3.5 mm analog stereo audio out x 1 External antenna port x 1 |
| Accessories | HDMI cable Velcro DC jack bracket Micro SD card bracket M2.5 screw x 2 Quick Start Guide AC power adapter with interchangeable plug head (US/EU/UK/AUS) SignApps Express QR code |
HDMI cable External 2 dB wireless antenna Velcro DC jack bracket Micro SD card bracket M2.5 screw x 2 Quick Start Guide AC power adapter with interchangeable plug head (US/EU/UK/AUS) SignApps Express QR code |
| Supported Open Standards | HTML5, JavaScript, and CSS W3C SMIL for cross-platform management W3C Widgets for HTML delivery Android API 12.0 |
HTML5, JavaScript, and CSS W3C SMIL for cross-platform management W3C Widgets for HTML delivery Android API 12.0 |
| Power | Input: 100 - 240V, 50 - 60 Hz, 0.5 A Max. Output: 12V, 1.5 A UL/CB/PSE certified power supply |
Input: 100 - 240V, 50 - 60 Hz, 0.5 A Max. Output: 12V, 1.5 A UL/CB/PSE certified power supply |
| Supported Image Formats | JPEG up to 1920 x 1080 PNG up to 1920 x 1080 |
JPEG up to 1920 x 1080 PNG up to 1920 x 1080 |
| Expansion Options | Memory expandable to 16 GB / 32 GB with Micro SD / SDHC card | Memory expandable to 16 GB / 32 GB with Micro SD / SDHC card |
| Supported Audio Formats | MP3 up to 320 Kbps | MP3 up to 320 Kbps |
| Environmental Tolerance | Operating temperature: -20 to 50 °C Humidity: 10 to 85 % @ 45 °C, non-condensing Shock: IEC 60068-2-27 Table A.1 (railway) Vibration: 1.5 G @ 5 - 200Hz, random |
Operating temperature: -20 to 50 °C Humidity: 10 to 85 % @ 45 °C, non-condensing Shock: IEC 60068-2-27 Table A.1 (railway) Vibration: 1.5 G @ 5 - 200Hz, random |
| Advanced Signage Features | Remote commissioning AlwaysOn, AppLockto prevent unauthorized access StrongCache for continued playback even when the network is not available |
Remote commissioning AlwaysOn, AppLockto prevent unauthorized access StrongCache for continued playback even when the network is not available |
| Content Management | SignApps Express Utility 3rd party solution (optional license) |
SignApps Express Utility 3rd party solution (optional license) |
| HTML5 Support | Widgets for calendar, clock, news, and web page integration HTML5 technologies, including CSS and Javascript WebKit-based browser engine, same as Google Chrome™ and Apple Safari® browsers |
Widgets for calendar, clock, news, and web page integration HTML5 technologies, including CSS and Javascript WebKit-based browser engine, same as Google Chrome™ and Apple Safari® browsers |
